Dynamic Checkweigher Application Case Study: Reducing Giveaway in Small-Bag Roasted Nuts Packaging

1. Industry Background

The global packaged snack nuts market has grown consistently over the past decade, fueled by rising consumer demand for healthy, convenient, portion-controlled snack options. Roasted almonds, cashews, mixed nuts and trail mix packs are among the fastest-growing segments in European and North American grocery, convenience store and e-commerce channels, with single-serve small bags (25g–200g) accounting for the largest volume share.

As the segment has become more competitive and retailer requirements stricter, net weight compliance has emerged as a critical operational and financial issue for nut processors. In the EU, the Pre-packaged Products Directive and national weights and measures authorities enforce strict minimum net content rules, with fines and product withdrawal for repeated underweight shipments. In the US, NIST Handbook 133 standards are enforced at state level, and major retail chains conduct regular shelf audits that result in chargebacks and de-listing for non-compliant suppliers.

Third-party quality standards including HACCP, BRCGS and IFS — now required by nearly all major European and North American grocery retailers — also mandate systematic weight verification as a critical control point. For high-value tree nuts, where raw material costs are extremely high, even a 0.5 gram overfill per small bag accumulates to tens of thousands of euros in lost margin per year. At the same time, underfilled packages trigger customer complaints, retailer penalties and lasting brand damage.

For snack nut manufacturers, compact inline dynamic checkweighing has become the standard solution. It delivers 100% weight inspection at full packaging line speed, eliminates unnecessary raw material giveaway, and provides auditable records to satisfy retailer and certification body requirements.

2. Customer Production Challenges

For this case study, we examine a medium-sized roasted nut processor located in Southern Germany, producing over 60 SKUs of roasted and flavored nuts, trail mixes and seed snacks in single-serve and share-size pouches ranging from 25g to 200g. The company operates four vertical form-fill-seal packaging lines with speeds between 60 and 100 pouches per minute, supplying German supermarket chains, gas station convenience stores and online grocery platforms.

Before implementing Fanchi-tech’s solution, the manufacturer faced three core operational and financial challenges:

1. Excessive product giveaway from conservative filling: To avoid underweight penalties, production teams set multihead weigher targets well above declared net weight. Average overfill across all lines was 4.1%, which for high-value cashews and almonds translated to approximately €145,000 per year in lost raw material profit.
2. Inadequate manual sampling: The plant relied on 30-minute interval manual weighing with bench scales. Less than 0.2% of total production was inspected, so weight drift from weigher wear, nut size variation and product oil coating often went undetected for extended periods. The company received an average of 8 weight-related retailer chargebacks per quarter.
3. Lack of auditable digital records: Weight results were recorded manually on paper log sheets. This made trend analysis slow and unreliable, and the quality team spent significant time compiling data for customer audits. The company had received minor non-conformances related to weight control documentation during two consecutive BRCGS surveillance audits.

Plant management calculated that combined overfill waste, retailer chargebacks and audit remediation costs exceeded €190,000 annually. They required a compact, high-speed inline checkweighing solution that could be installed on their existing narrow packaging lines, inspect 100% of pouches at full speed, automatically reject out-of-tolerance units, and generate digital audit-ready records.

3. Why Traditional Inspection Methods Were Not Enough

Many snack food manufacturers initially rely on manual sampling, static bench scales or the built-in accuracy of their filling equipment for weight control, but all of these approaches have fundamental limitations for high-volume small-bag production.

Manual periodic sampling covers only a tiny fraction of total output. Weight drift can occur gradually over a production run due to hopper level changes, nut size variation, oil coating buildup on weigher buckets and operator adjustments. With 30-minute sampling intervals, thousands of out-of-tolerance pouches can be produced before the issue is identified.

Static bench scale stations require dedicated operators to manually pull samples, weigh them, record results and adjust filling parameters. For high-speed lines producing 100+ pouches per minute, manual inspection cannot keep pace, and it adds significant ongoing labor cost.

Relying solely on multihead weigher accuracy is unreliable in practice. Even high-performance 10-head and 14-head weighers experience gradual drift over long production runs, especially with irregular, oily or sticky nut products. Independent downstream verification is universally recommended by quality assurance standards and required by most retail customers.

Paper-based record keeping makes it nearly impossible to perform meaningful statistical process control, identify recurring line performance issues, or quickly satisfy customer audit requests. Modern retailers increasingly demand digital, timestamped weight data as a condition of supplier approval.

Only 100% inline dynamic checkweighing can provide continuous, automated weight verification at full production speed, with automatic rejection of non-conforming packages and comprehensive data logging for both compliance and continuous improvement.

4. Fanchi-tech Solution

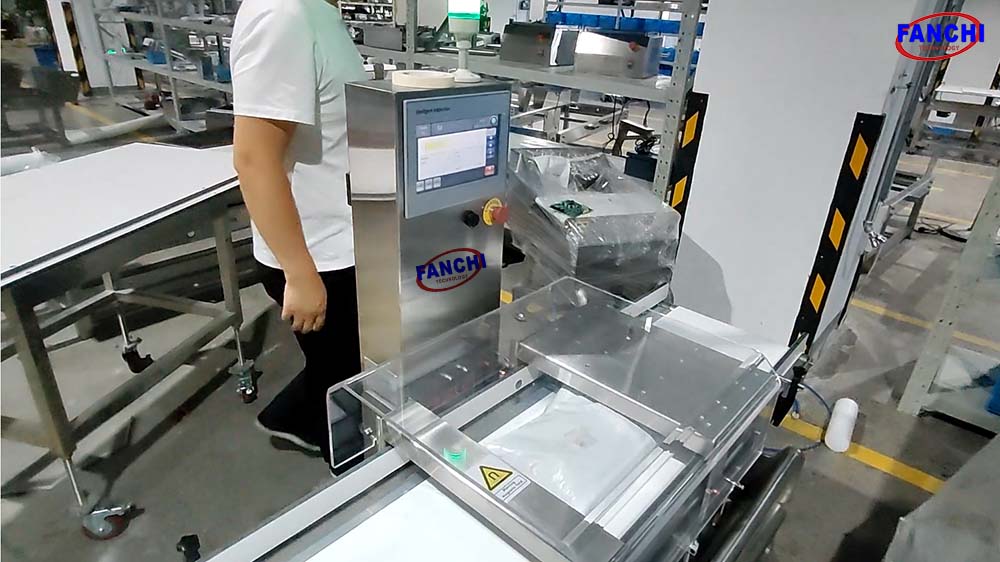

The roasted nut processor installed Fanchi-tech Compact Dynamic Checkweighers on all four packaging lines, positioned directly after the pouch sealing station and before secondary packaging into display cartons.

A compact dynamic checkweigher automatically weighs each individual pouch as it travels along the production conveyor. High-precision strain gauge load cells measure package weight in milliseconds while the product moves at full line speed, and the control system instantly compares the reading against pre-programmed upper and lower weight tolerance limits. Pouches within tolerance continue along the conveyor to secondary packaging, while underweight or overweight pouches are automatically diverted by the side-mounted pneumatic reject mechanism.

Core Performance Features

• High-precision compact weighing: Advanced digital load cell technology with active vibration compensation delivers stable, repeatable weighing accuracy even at high line speeds and in typical factory environments.
• High-speed pneumatic reject system: Side-mounted pneumatic pusher removes out-of-tolerance pouches into a lockable collection bin. Reject confirmation sensors verify that every defective item has been successfully removed.
• Multi-product recipe memory: Stores up to 100 product recipes with individual weight parameters, reject settings and calibration data. Operators can switch between different pouch sizes and nut SKUs in seconds without recalibration.
• Real-time SPC statistics: Built-in statistical process control functions display live production data including total count, pass rate, reject rate, average weight, standard deviation and Cpk values.
• Automatic data logging: All weighing results and reject events are automatically saved with time and date stamps. Data can be exported via USB or Ethernet for quality records and audit reporting.

Hygienic & Compact Design

Constructed entirely from 304 brushed stainless steel with a space-saving column-mounted control box design, the system fits easily into existing narrow packaging lines. The open-frame conveyor design supports easy cleaning, and the sealed electronics protect against dust and oil residue common in nut roasting environments.

5. Machine Configuration Matching This Application

The Fanchi-tech compact dynamic checkweigher was selected and configured specifically to match the nut processor’s production parameters and equipment dimensions:

• Weighing range: 10g – 1000g, fully covering the customer’s full pouch size range from 25g single-serve packs to 200g share-size bags, with additional headroom for future product extensions.
• Weighing accuracy: ±0.2g for pouches under 100g and ±0.5g for pouches up to 500g. This high level of precision allows the plant to safely tighten filling targets while maintaining zero underweight compliance risk.
• Conveyor specifications: 200mm narrow food-grade PU conveyor belt, perfectly sized for standing and flat nut pouches. Tool-less belt removal enables fast cleaning and reduces maintenance downtime.
• Line speed compatibility: Supports speeds up to 120 packages per minute, comfortably matching the customer’s maximum line speed of 100 ppm with reserve capacity for future speed upgrades.
• Reject mechanism: Side-mounted pneumatic pusher rejector with adjustable force and timing, calibrated to divert small pouches cleanly without damaging packaging or spilling product. A lockable reject bin prevents accidental reintroduction of rejected goods.
• Control interface: Column-mounted 7-inch industrial color touchscreen with intuitive menu navigation and multi-level password protection. The upright control design saves valuable floor space on compact packaging lines.
• Line height adjustability: Adjustable stainless steel stand with heavy-duty leveling feet, matched to the existing packaging line conveyor height for seamless inline integration.
• Construction & durability: Full 304 stainless steel frame and product contact parts, suitable for daily cleaning routines and long-term operation in dry snack food production environments.

The system can also be supplied as an integrated combination unit paired with a conveyor metal detector, providing both weight control and metal contamination detection in a single compact footprint.

6. Application Process

The compact dynamic checkweigher is integrated as a critical control point in the roasted nut packaging workflow, positioned immediately after pouch sealing and before cartoning:

1. Raw Nut Reception & Sorting: Raw nuts are received, cleaned, sorted and graded for size and quality.
2. Roasting & Seasoning: Nuts are roasted in batch or continuous ovens, then seasoned with oil, salt and flavorings.
3. Cooling: Roasted nuts are cooled to ambient temperature to prevent moisture buildup in packaging.
4. Storage Hopper: Finished product is held in surge hoppers feeding the packaging lines.
5. Filling & Sealing: Multihead weighers dispense precise amounts of nuts into vertical form-fill-seal pouches, which are then heat-sealed and cut.
6. Dynamic Checkweighing: Sealed pouches pass onto the checkweigher conveyor. Each pouch is weighed individually at full line speed, and the weight is compared against pre-set tolerance limits.
7. Automatic Rejection: Any pouch outside the acceptable weight range is automatically diverted by the side pneumatic pusher into a locked reject bin. The rejection event is logged with timestamp and weight value.
8. Cartoning & Case Packing: Accepted pouches proceed to secondary packaging into display cartons and then into shipping cases.
9. Production Monitoring: Production supervisors monitor real-time weight statistics and trend data to proactively adjust filling parameters and minimize giveaway.

7. Customer Benefits

Eight months after full deployment across all four packaging lines, the roasted nut manufacturer reported measurable improvements across cost, quality and compliance performance:

1. Major reduction in product giveaway: The plant was able to reduce average overfill from 4.1% to 1.0% while maintaining zero underweight compliance violations. Raw material savings reached approximately €98,000 over the 8-month period, putting the system on track for full payback within 11 months.
2. Eliminated retailer weight chargebacks: Over the full monitoring period, the company received zero weight-related retailer chargebacks or audit failures. This protected approximately €38,000 per year in previously lost revenue and strengthened relationships with three key retail accounts.
3. Improved labor efficiency: Automated 100% inspection eliminated the need for frequent manual sampling rounds, reallocating approximately 8 operator hours per day to higher-value production tasks. Line changeover time between SKUs was also reduced thanks to stored product recipes.
4. Passed BRCGS audit with zero non-conformances: Automatic digital data logging allows the quality team to generate weight compliance reports for any production period in minutes. Audit preparation time fell by approximately 75%, and the plant passed its most recent BRCGS surveillance audit with zero weight-control related non-conformances.
5. Proactive process improvement: Real-time SPC data enabled the maintenance team to identify and resolve gradual performance drift on one older multihead weigher, further improving overall line efficiency and reducing unplanned downtime.
6. Space-saving installation: The compact column design and narrow footprint allowed the systems to be installed on existing lines without rearranging surrounding equipment or requiring additional floor space.

8. Why Choose Fanchi-tech

Shanghai Fanchi-tech Machinery Co., Ltd. is a specialized manufacturer of food inspection and quality control equipment with over 16 years of industry experience. Our products are deployed in food processing facilities across more than 50 countries worldwide.

• Application-optimized compact design: Our small-format dynamic checkweighers are engineered specifically for narrow packaging lines and small retail pouches, delivering high accuracy at high speed in a minimal footprint.
• Proven weighing precision: Advanced digital load cell technology and intelligent signal processing deliver stable, repeatable gram-level accuracy, enabling customers to confidently tighten fill targets and reduce giveaway even for high-value small-bag products.
• Compliance-ready features: Automatic data logging, password protection, reject verification and audit-ready reporting support full compliance with HACCP, BRCGS, IFS and global net weight regulations.
• Flexible and configurable: Weighing range, conveyor width, reject type and line height can all be customized to match existing packaging lines and specific product requirements.
• Global component quality: Core electronic and pneumatic components are sourced from internationally recognized suppliers for long-term reliability and global spare parts availability.
• Responsive technical support: We provide comprehensive documentation, remote technical assistance and responsive after-sales support to customers worldwide.

9. FAQ

Q1: How accurate is a compact checkweigher for small nut pouches?

Under typical production conditions, Fanchi-tech compact dynamic checkweighers achieve accuracy of ±0.2g for packages under 100g and ±0.5g for packages up to 500g. Actual performance depends on package stability, line speed and factory environmental conditions.

Q2: Can a checkweigher really reduce giveaway for high-value nuts?

Yes, this is the primary financial benefit. By providing 100% accurate weight verification, a checkweigher allows production teams to safely reduce fill target weights while remaining fully compliant with net weight regulations. Most nut processors achieve giveaway reductions of 60–75%.

Q3: Will the checkweigher work at our high line speed?

Fanchi-tech standard compact checkweighers support speeds up to 120 packages per minute, which covers the vast majority of small-bag snack food packaging lines.

Q4: How does the reject system handle small flexible pouches?

The system uses a side-mounted pneumatic pusher with adjustable force and timing. It is calibrated to gently push out-of-tolerance pouches off the side of the conveyor into a collection bin without damaging the seal or spilling product.

Q5: Can the checkweigher send feedback to our multihead weigher?

Yes, with optional connectivity features the checkweigher can send weight trend data back to upstream filling equipment to enable automatic fill target adjustment, further reducing giveaway and minimizing operator intervention.

Q6: Is this equipment suitable for roasted nut production environments?

Yes. The system is constructed with 304 stainless steel and sealed electronics to resist dust and oil residue. The open-frame design and tool-less removable conveyor belt support easy cleaning and routine sanitation.

Q7: Does a checkweigher help with HACCP and BRCGS compliance?

Yes. Dynamic checkweighing is widely recognized as an effective critical control point for net weight control. The system’s automatic data logging, timestamped event records, password protection and reject verification all support HACCP, BRCGS and IFS audit requirements.

Q8: How many different product SKUs can the system store?

The standard system stores up to 100 product recipes, each with its own weight limits, reject parameters and calibration settings. This allows fast changeover between different pouch sizes and nut varieties.

Q9: How often does the checkweigher need calibration?

Under normal operating conditions, the system maintains stable calibration for extended periods. Most facilities perform a quick verification check with certified test weights at the start of each shift or production run. Full recalibration is typically only required after major maintenance or relocation.

Q10: Can weight data be exported to our plant quality management system?

Yes. The system includes USB and Ethernet connectivity. Weight data, reject logs and production statistics can be exported in standard file formats for integration with plant SCADA, MES or quality management systems.
