FA-CW Inline Checkweigher: Dynamic Weight Inspection from 3g to 60kg
Every pack that leaves your line carries a weight promise. Underweight means a retailer fine and a customer complaint. Overweight means free product given away on every single unit. Manual sampling at the end of the line catches neither — and the one bad pack that slips through does the damage.
The Fanchi-tech FA-CW series is an inline dynamic checkweigher that sits on your packaging line and weighs every package at production speed, automatically diverting anything outside the set limits. One family covers the whole range — from a 3g sachet to a 60kg carton — so you always match the model to your actual pack.
Full Range: Choose by Pack Weight
Light & Medium Packs — FA-CW160 / 230 / 300 / 360 / 450
| Model | FA-CW160 | FA-CW230 | FA-CW300 | FA-CW360 | FA-CW450 |
|---|---|---|---|---|---|
| Detecting Range | 3~200g | 5~1000g | 10~4000g | 10g~10kg | 10g~10kg |
| Scale Interval | 0.01g | 0.1g | 0.1g | 1g | 1g |
| Detecting Accuracy | ±0.1g | ±0.2g | ±0.3g | ±1g | ±1g |
| Detecting Speed | 250pcs/min | 200pcs/min | 150pcs/min | 120pcs/min | 80pcs/min |
| Weigher Size (W×L mm) | 160×200/250/300 | 230×250/350/450 | 300×350/450/550 | 360×450/550/800 | 450×550/700/800 |
Heavy Cartons & Bulk Bags — FA-CW500 / 600 / 700
| Model | FA-CW500 | FA-CW600 | FA-CW700 |
|---|---|---|---|
| Detecting Range | 0.1~25kg | 0.1~50kg | 0.1~60kg |
| Scale Interval | 1g | 1g | 1g |
| Detecting Accuracy | ±5g | ±10g | ±15g |
| Detecting Speed | 40pcs/min | 35pcs/min | 35pcs/min |
| Weigher Size (W×L mm) | 500×600/800 | 600×1200 | 700×1200 |
| Rejector | Heavy Pusher | Heavy Pusher | Heavy Pusher |
How It Works On Your Line
The checkweigher sits inline between your filler or sealer and packing:
- Product rides the PU anti-static belt onto the weighing section.
- The HBM high-accuracy load cell measures actual weight as it passes.
- Inside the set upper/lower limit, the pack continues forward.
- Outside the band, the reject mechanism diverts it automatically.
No line stoppage, no manual sorting, every pack weighed at production speed.
Reject Options Matched to Your Pack
Light & medium models (160–450) — choose from optional rejectors:
- Flipper
- Pusher
- Flapper
- Air Blasting
- Drop-down
Heavy models (500/600/700) — fitted with a Heavy Pusher Rejector, operating on plant air at 5–8 Bar (10mm outside diameter, 72–116 PSI) to push large cartons and sacks off the line without damage.
Built-In Across the Whole Series
- Stainless Steel 304 construction for hygiene and easy cleaning
- PU Anti Static belt — safe for food contact, static-free on dry products
- 7-inch LCD touchscreen for limit setting, recipe storage and weight statistics
- 100 product memory for fast changeover between packs
- HBM high-accuracy load cell — stable, repeatable weighing
- CE (Declaration of Conformity + Declaration of Manufacturer); UL certified through our US customer
- Multi-language software — English, with Spanish/French/Russian optional
- Data retrieval — USB standard; Ethernet/RS232 optional
- Adjustable line height — light/medium 700–950mm, heavy 600–900mm, ±50mm, customizable
- Heavy models add self-diagnosis (zero error, photosensor error, setting error, product-too-close error), a clear windshield cover and photo sensor; power AC110/220V 1phase 50/60Hz 750W; operating temperature 0–40°C
What It Protects
- Stops underweight shipments before retailer fines or complaints
- Cuts overweight giveaway and recovers margin lost to overfill
- Produces audit-ready weight data for HACCP records and customer reviews
- Runs unattended at line speed without added headcount
- Integrates inline with filler, sealer, cartoner and downstream equipment
Suitable Products
- FA-CW160: coffee/tea sachets, seasoning sticks, nutraceutical pouches, candy (3–200g)
- FA-CW230: snack bags, biscuit packs, confectionery, small pouches (up to 1kg)
- FA-CW300: cereal boxes, ready-meal trays, mid-size packs (up to 4kg)
- FA-CW360/450: frozen food bags, cartons, pet food, ingredient packs (up to 10kg)
- FA-CW500/600/700: large cartons, bulk sacks, 25–60kg cases
Why Buy Direct from Fanchi-tech

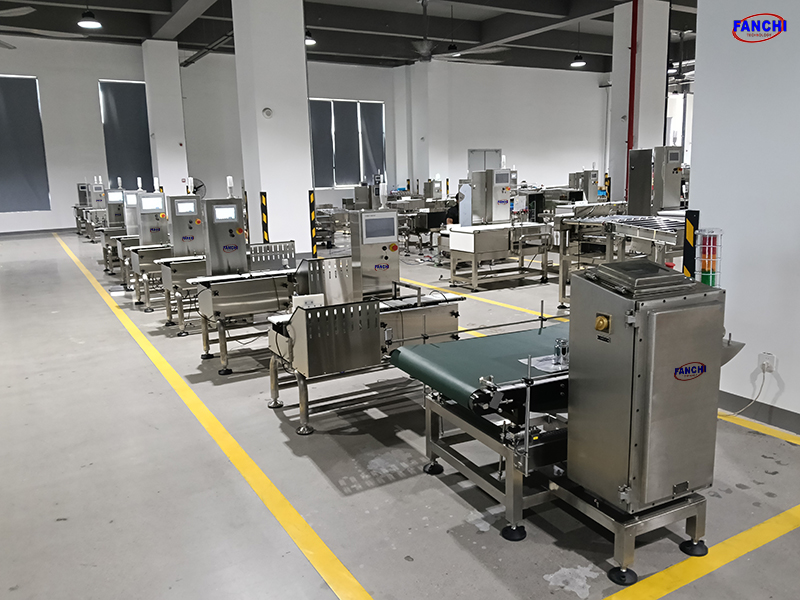

Shanghai Fanchi-tech Machinery Co., Ltd. has built food inspection equipment since 2010 and ships checkweighers, metal detectors and X-ray systems to 30+ countries. Standard off-the-shelf components let your local technician service the machine — no proprietary lock-in. Every unit is calibrated and run-tested on our floor before shipment, backed by a 12-month parts and service warranty.
Frequently Asked Questions
Can it reject both underweight and overweight at once? Yes. Set upper and lower limits on the touchscreen; anything outside the band is diverted, anything inside passes through.
Which reject mechanism do I need? Light pouches use Air Blasting; rigid boxes use Flipper, Pusher or Flapper; heavy cartons use the Heavy Pusher. Tell us your pack and speed and we match it.
Do we need compressed air? Yes. Heavy models require 5–8 Bar plant air (10mm OD, 72–116 PSI). Light-model air-blast options are confirmed in your quotation.
Which model fits our product? Send pack weight, pack size and pcs/min; we match 160 through 700 and the reject option.
What is the lead time? Standard models typically 4–6 weeks; customized configurations are confirmed with the formal quotation.
Test It on Your Own Pack
Send a few sample packages and your target weight range. We weigh them on the matching FA-CW model on our floor and send back the report before you order.
