Published: July 15, 2026
In an era where global food retailers are enforcing stricter quality benchmarks — and a single product recall can cost brands millions in damages and lost reputation — food X-ray inspection has transitioned from a "nice-to-have" to an essential line investment. Based on our most recent RFQ analysis and customer inquiries from North America, Europe, and Southeast Asia, the top questions driving purchasing decisions are:
- "What size contaminants can your system detect in metalized film packaging?"
- "Does it meet FDA and CE radiation safety standards?"
- "Can it perform quality checks beyond foreign body detection?"
- "How quickly can our operators learn to run it?"
Recently, Shanghai Fanchi-tech Machinery Co., Ltd. delivered a turnkey solution featuring our FA-XIS4016 X-ray Inspection System to a growing packaged snack manufacturer, directly answering these questions while delivering measurable operational and compliance benefits.
Client Profile & The Challenge
Our client is an established snack food producer specializing in dried fruit, nut mixes, and energy bars, exporting to over 15 countries. They approached us with three pressing challenges identified during their annual supplier audit preparation:
1. Inadequate Contaminant Detection
Their existing metal detectors could only identify ferrous and non-ferrous metals. Stone fragments from raw nut supplies and glass shards from packaging line breakages were undetectable — a gap that had already resulted in two retail customer complaints.
2. Retail Compliance Mandate
Two major European supermarket chains had issued new supplier requirements mandating X-ray inspection as a prerequisite for shelf placement, with a compliance deadline of 90 days.
3. Production Waste from False Rejects
Their legacy detection system produced a false reject rate of approximately 1.2%, wasting an estimated 140 kg of finished product weekly.
After comparing quotes from three European suppliers and two Chinese manufacturers through a formal RFQ process, they selected Fanchi-tech for our superior detection specifications, hygienic design credentials, and competitive total cost of ownership.

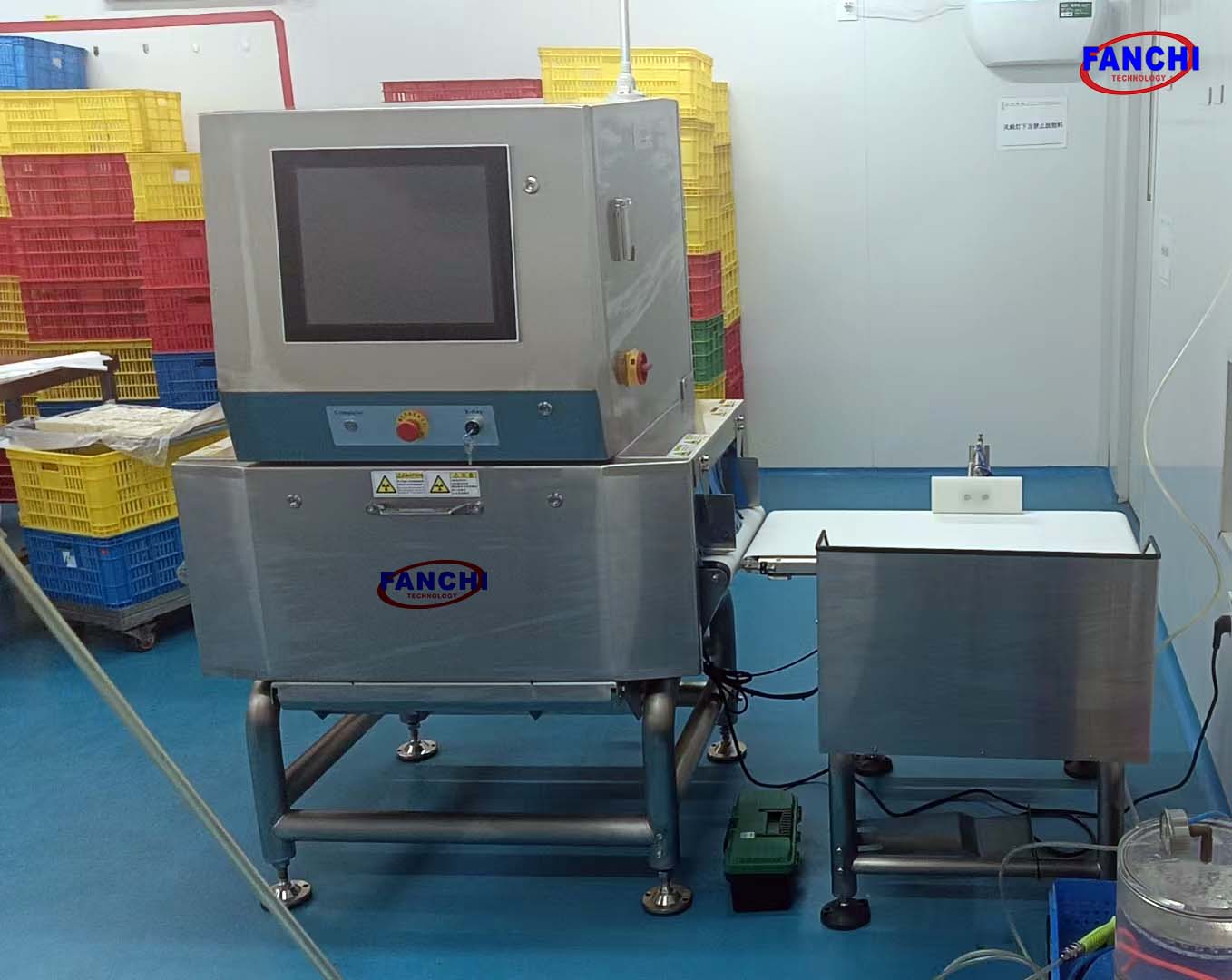

The Fanchi-Tech Solution: FA-XIS4016 X-ray Inspection System
| Specification | FA-XIS4016 |
|---|---|
| Tunnel Size (W×H) | 400 × 160 mm |
| X-ray Tube Power (Max) | 210 / 350W |
| Detection – Stainless Steel 304 Ball | ≥ 0.3 mm |
| Detection – Metal Wire (L×D) | ≥ 0.2 × 2 mm |
| Detection – Glass / Ceramic Ball | ≥ 1.0 mm |
| Belt Speed Range | 10 – 70 m/min (adjustable) |
| Load Capacity | 10 kg |
| Conveyor Belt Type | PU Anti-Static Belt |
| Operator Interface | 17-inch Full Color LCD Touch Screen |
| Product Memory | Up to 100 product presets |
| X-ray Generator / Sensor | VJT / DT (industrial-grade) |
| Construction Material | Food-grade Stainless Steel 304 |
| IP Rating (Conveying Part) | IP66 (washdown-ready) |
| Radiation Safety | EN 61010-02-091, FDA CFR 21 Part 1020.40 compliant |
| Operating System | Windows 10 embedded |
| Line Height Options | 700–950 mm (customizable ±50 mm) |
Key Features Applied in This Installation
1. Multi-Contaminant Detection Capability
Our advanced imaging algorithm simultaneously detects:
- Ferrous and non-ferrous metals (including stainless steel)
- Glass fragments (even in glass packaging)
- Stone, ceramic, and bone fragments
- High-density plastic and rubber contaminants
2. Hygienic Design for Food Production Environments
The all-stainless-steel construction with sloped surfaces and rounded edges meets IP65 washdown standards — ideal for the client's daily sanitation protocols. The open-frame design eliminates harborage points, a critical requirement for BRCGS audit compliance.
3. Intelligent Product Learning & Low False Rejection
The system's auto-learning function maps product density profiles in under 5 minutes, achieving a false reject rate of less than 0.05% — a 90% improvement over the client's previous equipment. This translated to approximately 120 kg less product waste per day.
4. Seamless Line Integration
The plug-and-play conveyor design integrated directly into the client's existing packaging line without major modifications. The system includes standard I/O ports for reject device synchronization and data logging.
Implementation Results & Client Outcomes
After three months of continuous operation, the client reported the following measurable results:
✅ Quality & Compliance
- 100% pass rate on third-party food safety audits
- Successfully passed Walmart and Tesco supplier qualification inspections
- Zero customer complaints related to foreign body contamination since installation
✅ Operational Efficiency
- Production uptime maintained at 99.2% with the X-ray system in-line
- Reduced manual inspection labor by 1.5 FTEs per shift
- Reject confirmation station streamlined with automatic image storage for traceability
✅ Cost Savings
- Monthly product waste reduction valued at approximately $3,800
- Avoided potential recall costs estimated at $50,000+ per incident
- Payback period projected at under 14 months
"The Fanchi X-ray system not only helped us secure our largest retail contract to date, but it also paid for itself faster than we expected. The intuitive interface means our line operators mastered it in a single training session."
— Plant Manager, Snack Manufacturing Co.
Frequently Asked Questions
Q1: Is X-ray radiation safe for food and operators?
A: Absolutely. Our systems use low-energy X-ray beams that are fully shielded within the inspection tunnel. The radiation exposure to food is thousands of times lower than a single airport security scan — well below all international safety limits. Operators receive effectively zero exposure under normal operating conditions. All units comply with CE, FDA, and ISO 13485 safety standards.
Q2: Can the X-ray system inspect products in metalized film packaging?
A: Yes — this is one of the primary advantages of X-ray over traditional metal detectors. Our systems easily inspect products in foil bags, metalized film, aluminum trays, and cans without signal interference.
Q3: What additional quality checks can it perform besides contaminant detection?
A: Beyond foreign body detection, our system can simultaneously verify:
- Fill level / weight estimation
- Seal integrity (fold-over detection)
- Component count verification
- Packaging damage identification
Q4: Do you provide installation and after-sales support internationally?
A: Yes. Fanchi-tech provides remote commissioning support worldwide, with on-site installation available through our regional partner network. We offer 12 months of standard warranty plus optional extended service contracts with spare parts shipping globally.
Shanghai Fanchi-tech Machinery Co., Ltd. is a specialized manufacturer of food inspection and weighing equipment, serving over 30 countries across North America, Europe, Southeast Asia, and the Middle East. Our product range includes food X-ray inspection systems, metal detectors, checkweighers, and combination inspection systems.
We work directly with food processors, packaging companies, and system integrators to deliver tailored quality control solutions that balance performance, reliability, and cost-effectiveness.
Ready to Upgrade Your Food Safety Inspection?
If you're evaluating X-ray inspection for your production line, we welcome your RFQ. Our engineering team will review your product specifications, line speed requirements, and compliance targets to recommend the optimal configuration.
Post time: Jul-15-2026
