Gravity Fall Metal Detector for Spice Powder Production

In spice and seasoning production, powders continuously move from mixers, hoppers or storage systems toward filling and packaging equipment. During this process, metal fragments can enter the product through raw materials, processing equipment or mechanical wear.

For continuously flowing dry powders, a conveyor metal detector is not always the most suitable configuration.

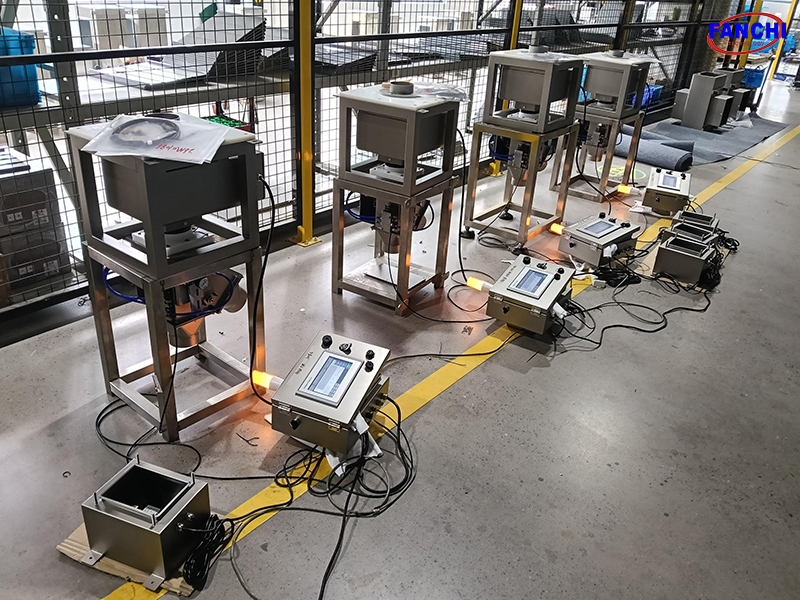

The Fanchi-tech FA-MD-P Gravity Fall Metal Detector is designed specifically for bulk powders and granules that move through a production line by gravity. The free-fall configuration allows the product to pass directly through the detection area before packaging, providing an efficient way to remove metal-contaminated product from the main product stream.

Application: Spice and Seasoning Powder

Spice powder is a typical free-flowing bulk material that can be transported vertically through a production process.

Typical applications include:

• Chili powder
• Curry powder
• Pepper powder
• Garlic powder
• Onion powder
• Mixed seasoning powder
• Food seasoning blends

For these applications, the production line can be arranged as:

Hopper → Free-Fall Metal Detector → Reject System → Packaging

This layout allows metal inspection to take place before the product enters the final packaging stage.

Why Use a Gravity Fall Metal Detector?

Traditional conveyor metal detectors are designed for products transported on a belt. However, many powder and granule production processes already use gravity-fed material transfer.

A gravity fall system can therefore be integrated directly into the vertical product flow.

The Fanchi-tech FA-MD-P series is designed for continuously flowing free-falling bulk materials and uses fast-switching separation to discharge contaminated material directly from the product stream. The system is intended to detect common metal contaminants including ferrous, non-ferrous and stainless steel metals.

Key advantages for spice powder production

Direct integration into vertical production lines

The detector can be positioned below a hopper, feeding system or other gravity-fed equipment.

Inspection before packaging

Detecting metal contamination before filling and packaging can help reduce the risk of contaminated finished products reaching the next production stage.

Suitable for bulk powder inspection

The FA-MD-P series is designed for powders and granules rather than requiring the product to be transported on a conveyor.

Detection of multiple metal types

The system is designed to identify ferrous, non-ferrous and stainless steel contaminants.

Typical Spice Powder Production Flow

A typical application can be configured as:

1. Raw Material Handling

Spices and seasoning ingredients are transferred into the production system.

2. Mixing and Processing

The ingredients are processed and blended according to the required recipe.

3. Gravity-Fall Metal Detection

The free-flowing powder passes vertically through the FA-MD-P metal detector.

4. Automatic Rejection

When metal contamination is identified, the contaminated product is separated from the main product flow.

5. Packaging

The inspected product continues to the filling and packaging process.

This positioning makes the metal detector a quality-control point immediately before the downstream packaging stage.

What Products Can Be Inspected?

Although this application focuses on spice powder, the same gravity-fall inspection principle can be used for many free-falling bulk materials.

Typical applications include:

Food powders:
Flour, sugar, starch, milk powder, protein powder, seasoning powder and food additives.

Granular materials:
Plastic pellets, resin granules and other free-flowing industrial materials.

Pharmaceutical materials:
Powders, tablets and capsules.

Fanchi’s existing FA-MD-P product information specifically identifies bulk powders and granules, with applications including flour, sugar, plastic granules, gravel, tablets and capsules.

How to Select the Right Gravity Fall Metal Detector

The correct metal detector configuration depends on the product and production line rather than the product name alone.

Before selecting a system, manufacturers should evaluate:

• Product type
• Product density
• Powder or granule characteristics
• Product flow rate
• Pipe and aperture dimensions
• Installation height
• Product temperature
• Moisture and conductivity
• Required detection performance
• Reject method
• Integration with upstream and downstream equipment

For difficult products, an actual product sample test is recommended before final equipment selection.

Why Fanchi-tech?

Shanghai Fanchi-tech Machinery Co., Ltd. provides industrial inspection solutions including metal detectors, checkweighers, X-ray inspection systems and combination inspection systems.

For gravity-fed powder and granule applications, the FA-MD-P series is positioned as a dedicated free-fall metal detection solution for bulk materials.

Fanchi-tech can evaluate the customer’s material, production flow and installation conditions to recommend an appropriate metal detection configuration.

Request a Gravity Fall Metal Detector Solution

Are you looking for a metal detector for spice powder, seasoning powder, flour or other free-falling bulk materials?

Send us your product type, production capacity, pipe size and application requirements.
