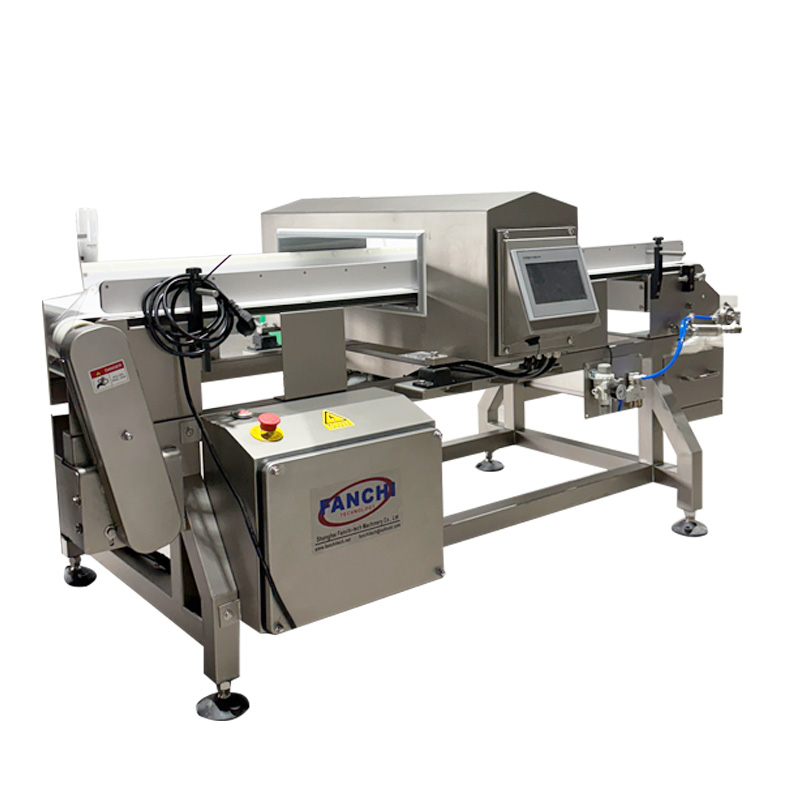

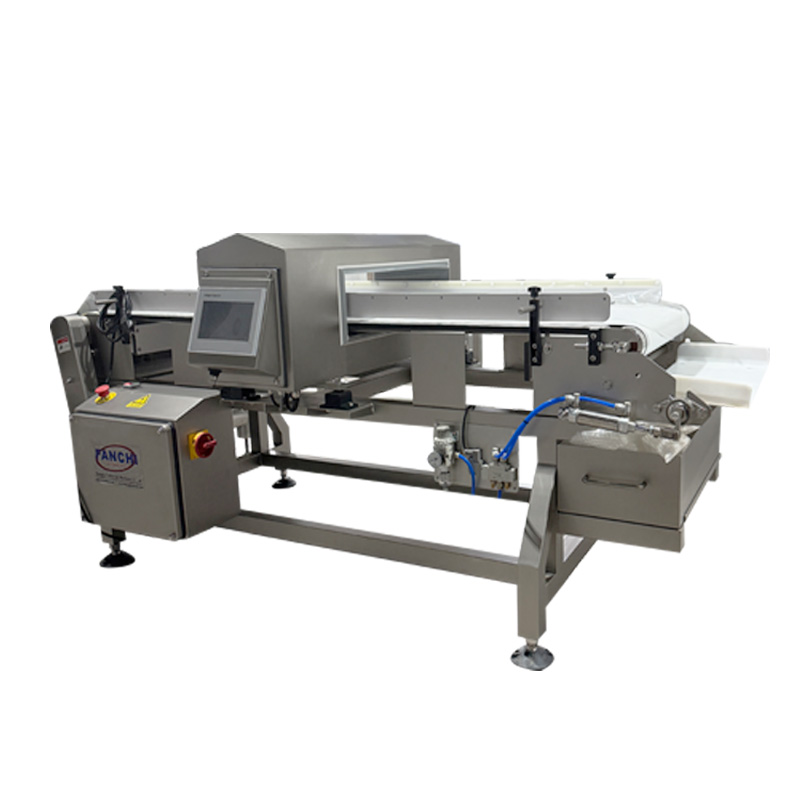

High Sensitivity Food Metal Detector Conveyor Type for Food Processing Industry
Introduction&Application
Product Highlights
1. Full range of aperture sizes to suit products being inspected.
2. Auto parameter setting by intelligent product learning.
3. Higher interference proof by multi-filtering algorithm and X-R orthogonal decomposition algorithm.
4. Multilevel password protection provides secure access
5. Anti-interference photoelectric isolation drive allows remote installation of operation panel.
6. Further improvement in metal sensitivity and detecting stability by adaptive DDS and DSP technology.
7. Multiple product memories for rapid product change over and data storage.
8. Able to detect all kinds of metal, such as iron, stainless steel, copper, aluminum, etc.
9. Optional rejection modes: pneumatic pusher, pneumatic flipper, pneumatic drop belt, belt retraction.
10. Optional full-cover or open type collecting bin.
11. Optional output safety cover with gate-open sensor that stops the machine.
12. SUS304 frame and major hardware parts by CNC tooling.
Key Components
● Durable EMA alarming tower
● US ferromagnetic random access memory
● Japanese Oriental motor
● SUS 304 roller bearing
● Food grade PU conveyor belt
● Japanese SMC pneumatic components
● Danish Danfoss frequency converter
● Optional keypad and touch screen HMI.
Technical Specification
|
No
|
Item
|
Data
|
|
1
|
Product Name
|
Fanchi-Tech FA-MD-II Conveyor Metal Detector For Food
|
|
2
|
Material of Construction
|
304 Brushed stainless steel
|
|
3
|
Power Supply
|
220-240 VAC, 50-60 Hz, 1 Ph, 400W
110 VAC, 60 Hz, 1 Ph, 400W |
|
4
|
Temperature Range
|
-10 to 40° C (14 to 104° F)
|
|
5
|
Humidity
|
0 to 95% Relative Humidity (Non-condensing)
|
|
6
|
Belt Speed
|
5-45m/min(variable)
|
|
7
|
Conveyor Belt Material
|
Food level PU belt
|
|
8
|
Operation Panel
|
Key Pad(Touch Screen is optional)
|
|
9
|
Product Memory
|
100
|
|
10
|
Rejecting Mode
|
Sound and light alarm
|
|
11
|
Software Language
|
English(Spanish/French/Russian, etc optional)
|
|
12
|
Conformity
|
CE (Declaration of Conformityand Declaration of Manufacturer)
|
|
13
|
Automatic Reject Options
|
Belt-Stop / Stop On Detect, Pusher, Air-blast, Flipper, Flap, etc
|
Detial
Q: What industries and product types is the FA-MD-II conveyor metal detector applicable to?
A: This metal detector is widely used in food, pharmaceutical and cosmetic production lines. It fits various food segments including meat, poultry, fish, bakery, convenience food, ready meals, confectionery, snacks, dried foods, cereals, dairy & egg products, fruits, vegetables and nuts. All machines can be custom-made to match the specific requirements of different production environments.
Q: What kinds of metal contaminants can it detect, and what technologies guarantee its detection performance?
A: It can detect all common metal contaminants such as iron, stainless steel, copper and aluminum. It adopts adaptive DDS and DSP technology to improve metal sensitivity and detection stability, and uses multi-filtering algorithm and X-R orthogonal decomposition algorithm to deliver stronger anti-interference performance in complex production environments.
Q: How convenient is it to switch production between different products?
A: The machine supports intelligent product learning for automatic parameter setting, and can store up to 100 sets of product presets, realizing rapid product changeover. It is also equipped with multilevel password protection for secure operation access, and the operation panel supports keypad (optional touch screen) operation.
Q: What rejection modes and optional accessories are available?
A: It is standard configured with sound and light alarm upon metal detection. For automatic rejection, multiple options are available including belt-stop, pneumatic pusher, air-blast, flipper and flap. Optional accessories include full-cover or open-type collecting bins, and output safety cover with gate-open sensor that stops the machine automatically.
Q: Is the machine suitable for wet or wash-down food processing environments?
A: Yes. The whole machine adopts a 304 brushed stainless steel frame and main hardware parts processed by CNC tooling, matched with a food-grade PU conveyor belt, which meets strict food hygiene standards. It operates stably in -10 to 40°C temperature and 0–95% non-condensing humidity, suitable for wet, dry and frozen food processing scenarios, and holds CE conformity certification.
