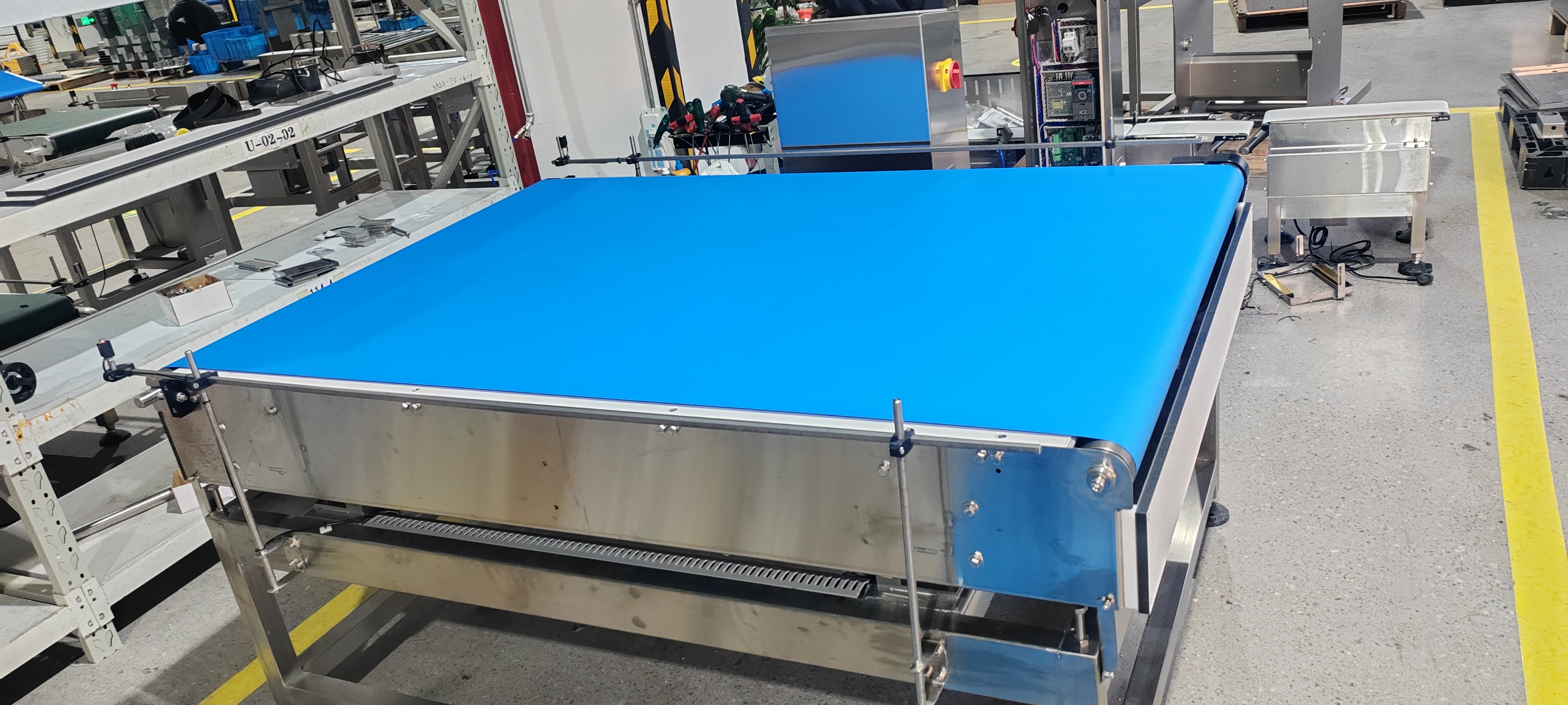

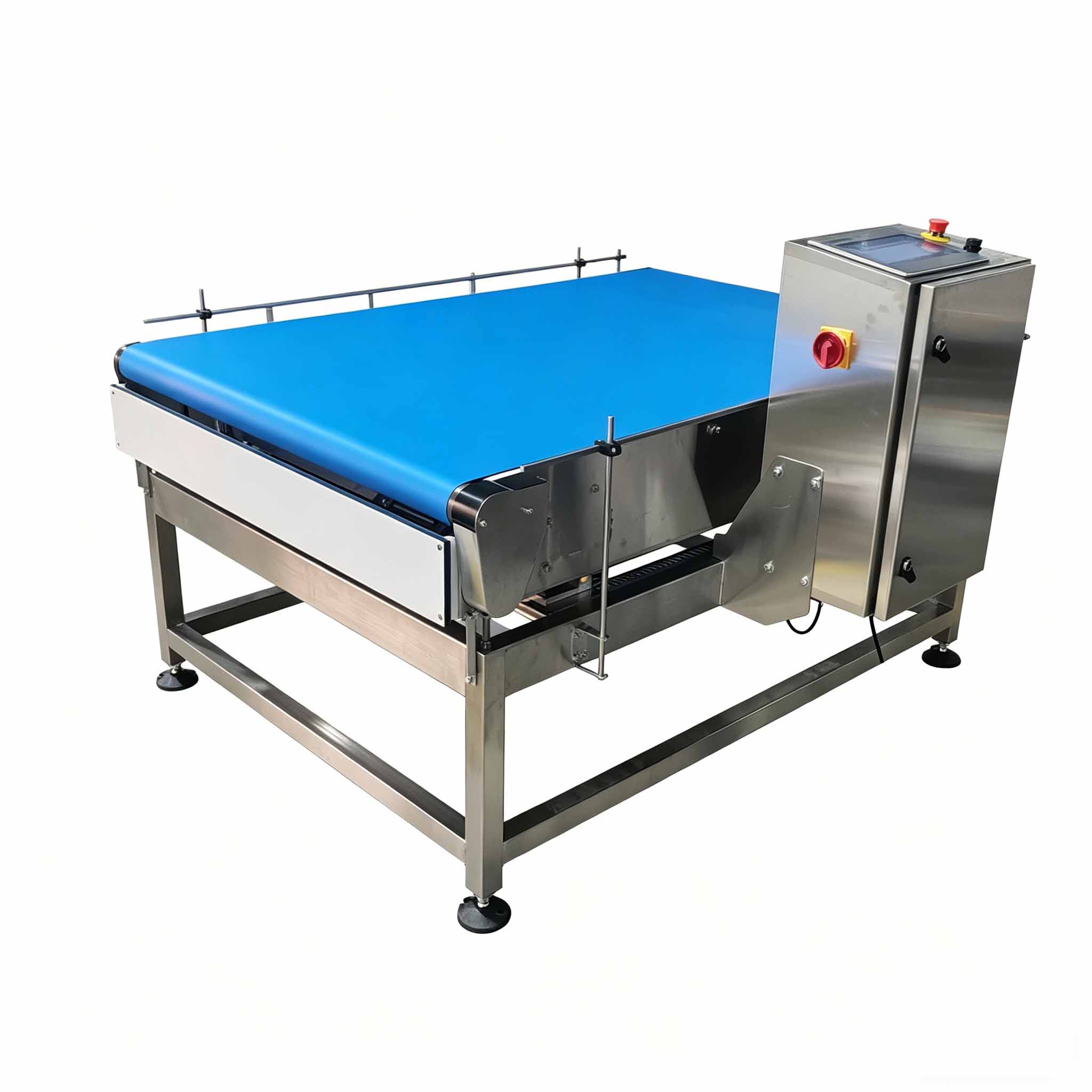

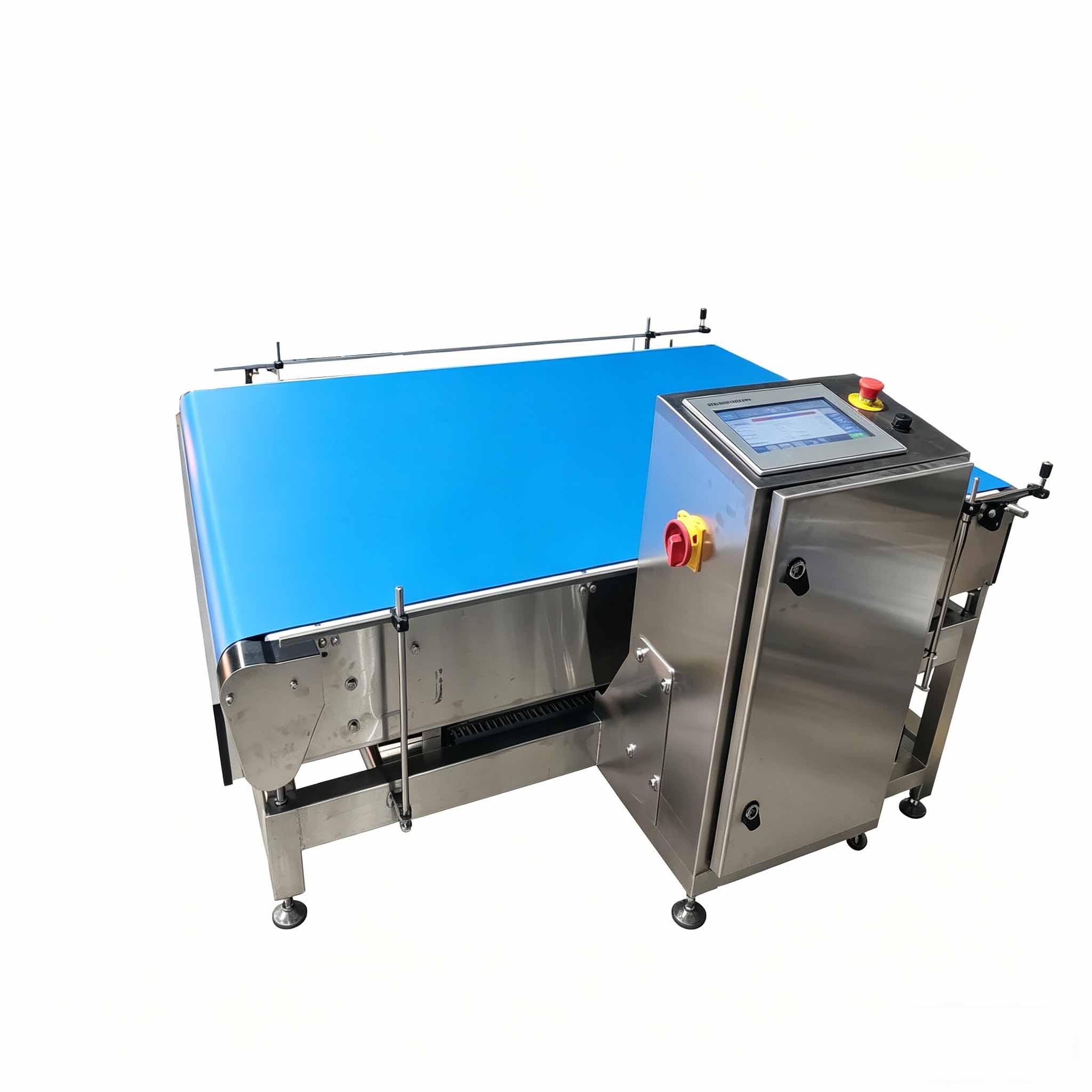

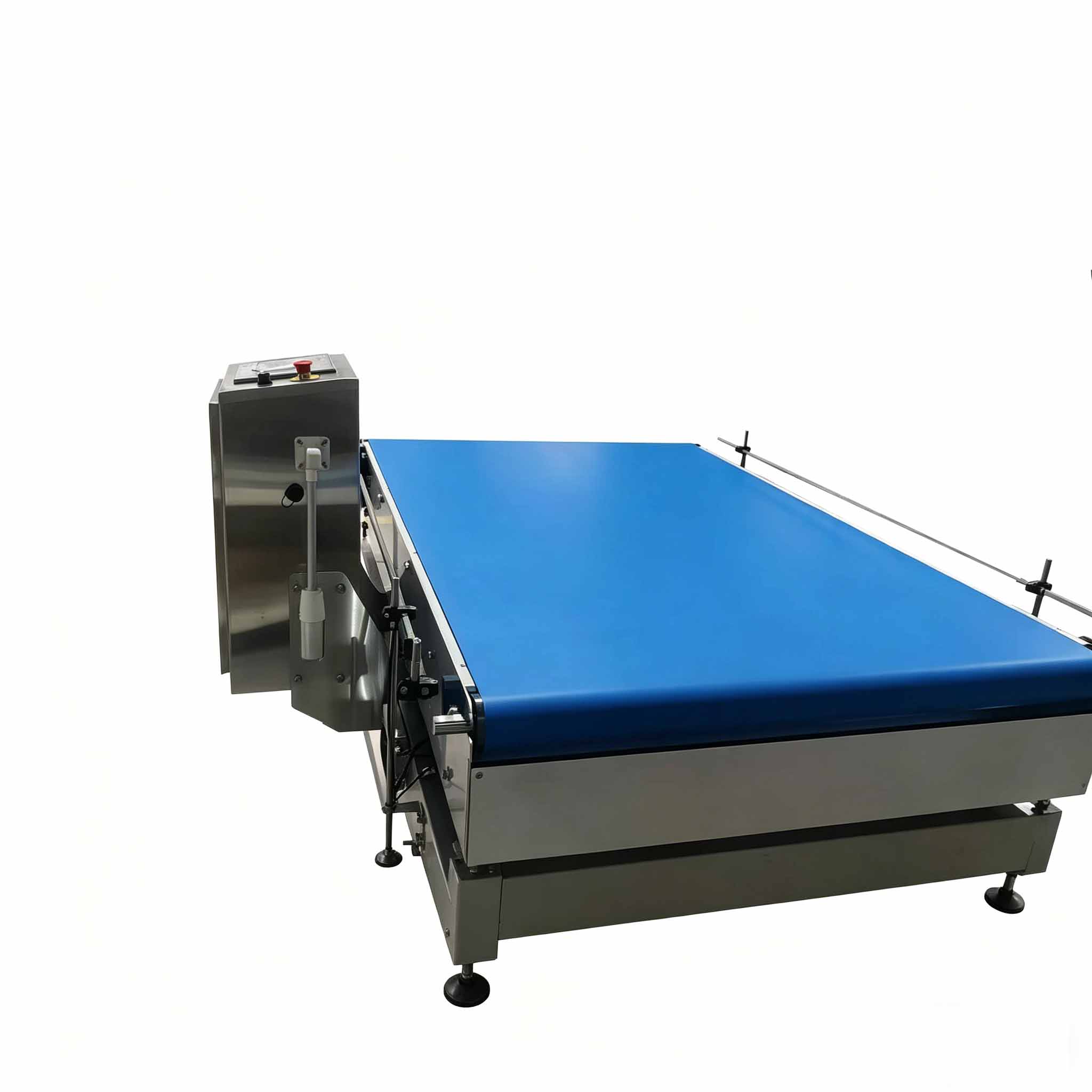

Fanchi Dynamic Checkweigher FA-CW1200 Dedicated for Logistics Industry and TV Weight Check
Introduction&Application
Fanchi Dynamic Checkweigher FA-CW1200 Dedicated for Logistics Industry and TV Weight Check
1. Weighs a wide range of flexible and rigid packs up to 100kg;
2.Excellent processing and weighing speed by FPGA hardware filter with intelligent algorithms;
3.Automatic parameter setting by intelligent product sampling;
4.Ultra-fast dynamic weight tracking and automatic compensation technology to effectively improve the weighing stability;

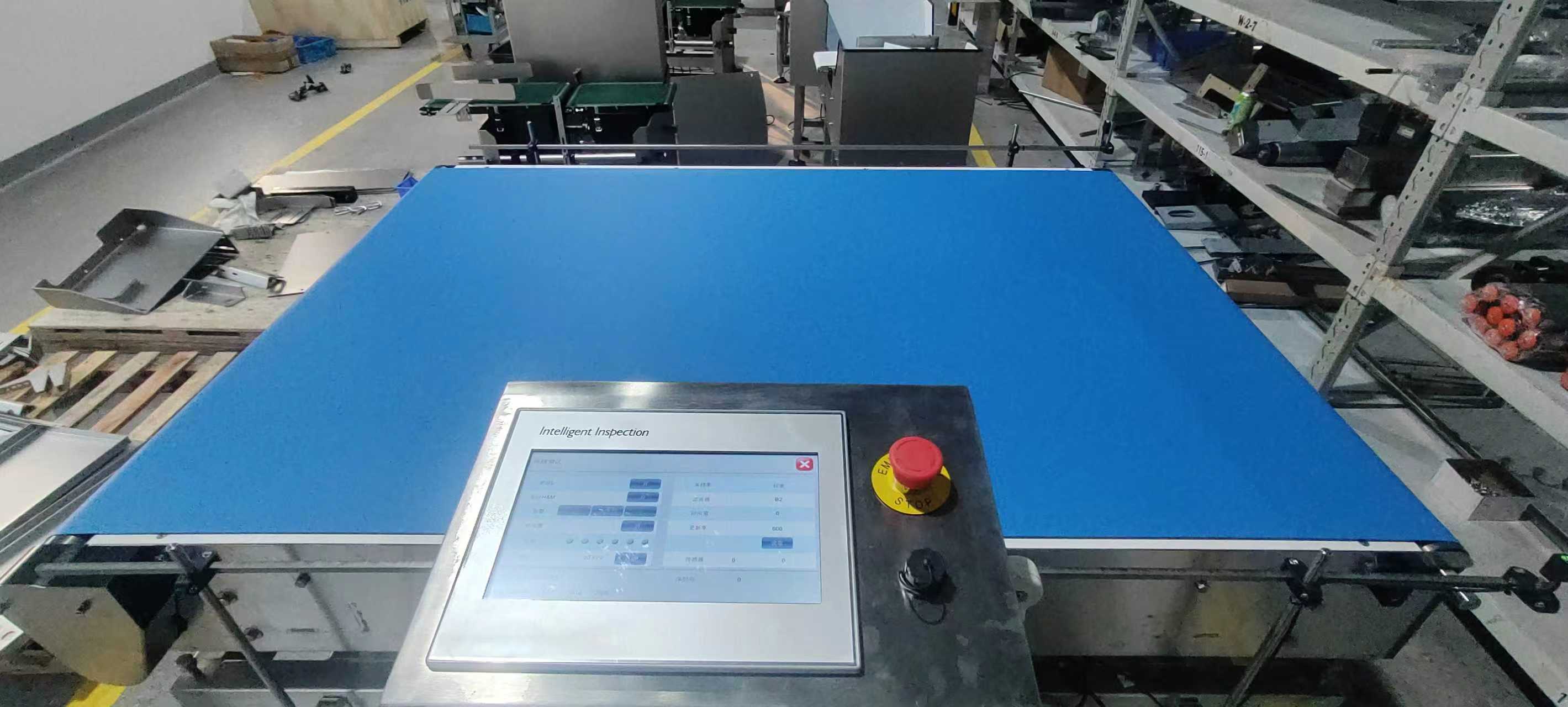

5.Easy operation by friendly colorful HMI;
6.High capacity operation statistic record with USB data output;
7.Brushless motors & proven conveyor components designed for reliable 24/7 operation

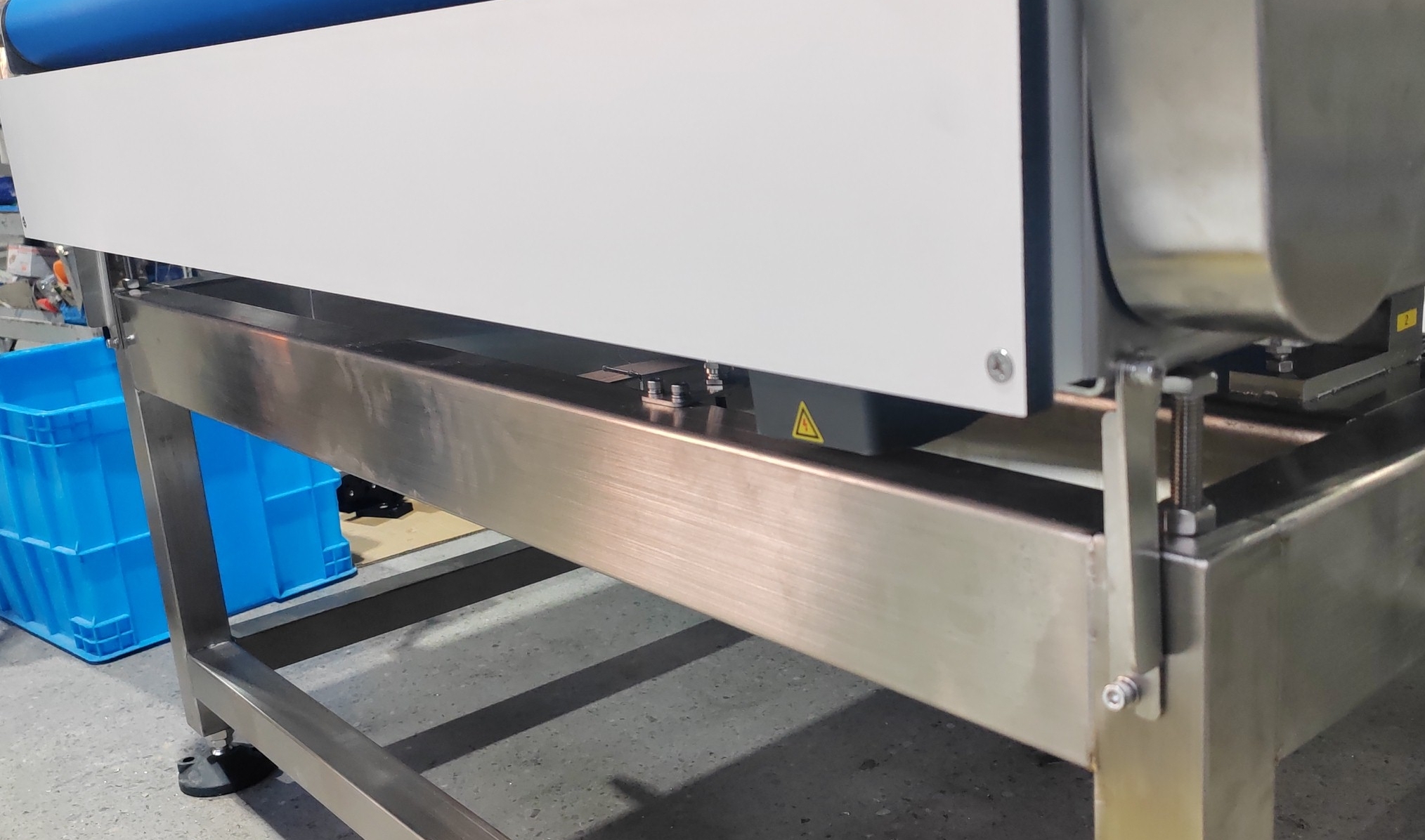

8.High precision structural components and stainless steel 304 frame by CNC tooling.
Key Components
1. German HBM high speed load cell
2. Japanese Oriental motor
3. Danish Danfoss frequency converter
4. Japanese Omron Optic sensors
5. US Gates synchronous belt
6. Japanese SMC pneumatic unit
7. Weinview industrial touch screen
Technical Specification
| Model | FA-CW1200 |
| Brand | Fanchi |
| Weight Range | 0.1-100kg |
| Minimum Scale/Resolution | 1g |
| Best Accuracy(Зσ) | ±20g |
| Max Throughput | 15pcs/min |
| Line Height Options | 450, 500, 550, 600, 650, 700, 750, +/-100mm(can be customized) |
| Weigher Platform Size(WxL) | 1200x1800mm |
| Belt Width | 1200mm |
| Belt Type | PU Anti-static |
| Supply Voltages | 220V/1P/50 or 60Hz |
| Air Supply | 5-8bar(10mm outside dia) |
| Product Memory | 100 |
| Material of Construction | 304 Brushed stainless steel |
| Temperature Range | -10 to 40° C (14 to 104° F) |
| Humidity | 0 to 95% Relative Humidity (Non-condensing) |
| Software Language | English(Spanish/French/Russian, etc optional) |
| Data Retrieval | Via USB Port |
| Certificates | CE/ISO9001/ISO14001 |

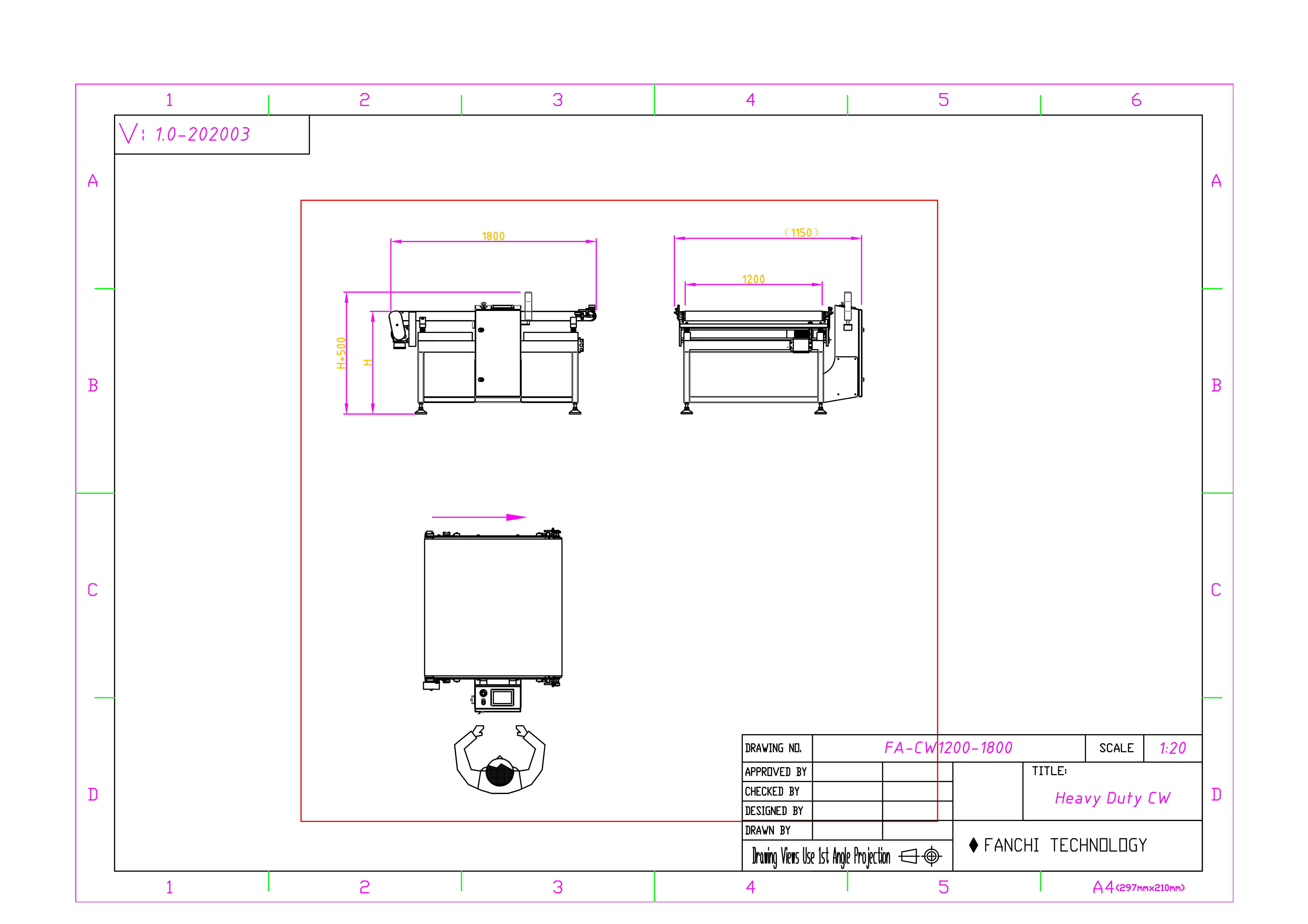

Size layout
FAQ
Q: What industries and product types is the FA-CW1200 dynamic checkweigher designed for?
A: The FA-CW1200 is a dedicated checkweigher built for the logistics industry and TV weight inspection scenarios. It is compatible with a wide range of flexible and rigid packages up to 100kg, including cartons, boxes, bags and bulky goods commonly used in logistics, home appliance and manufacturing production lines.
Q: What is the weighing accuracy and maximum processing speed of this model?
A: The FA-CW1200 has a minimum weighing resolution of 1g and a best accuracy of ±20g (3σ). Powered by FPGA hardware filtering and intelligent algorithms, it achieves a maximum throughput of 15 pieces per minute, balancing high precision and efficient dynamic weighing performance.
Q: Can the checkweigher be customized to match my existing production line?
A: Yes. Standard line height options cover 450mm to 750mm, and custom adjustment within ±100mm is available to fit your line layout. Besides default English, the software interface also supports optional languages including Spanish, French and Russian.
Q: How can I export and manage the weighing operation data?
A: The equipment is equipped with high-capacity operation statistic recording function. All weighing data and running logs can be exported directly via the built-in USB port. It also supports storage of up to 100 product presets, allowing quick parameter switching when changing products.
Q: Is the FA-CW1200 suitable for 24/7 continuous operation? What material is the machine made of?
A: Yes, it is engineered for non-stop operation. It adopts brushless motors and proven conveyor components to ensure reliable 24/7 running. The whole machine frame is made of 304 brushed stainless steel processed by CNC tooling, with high structural precision and durability. It is also certified with CE, ISO9001 and ISO14001.
