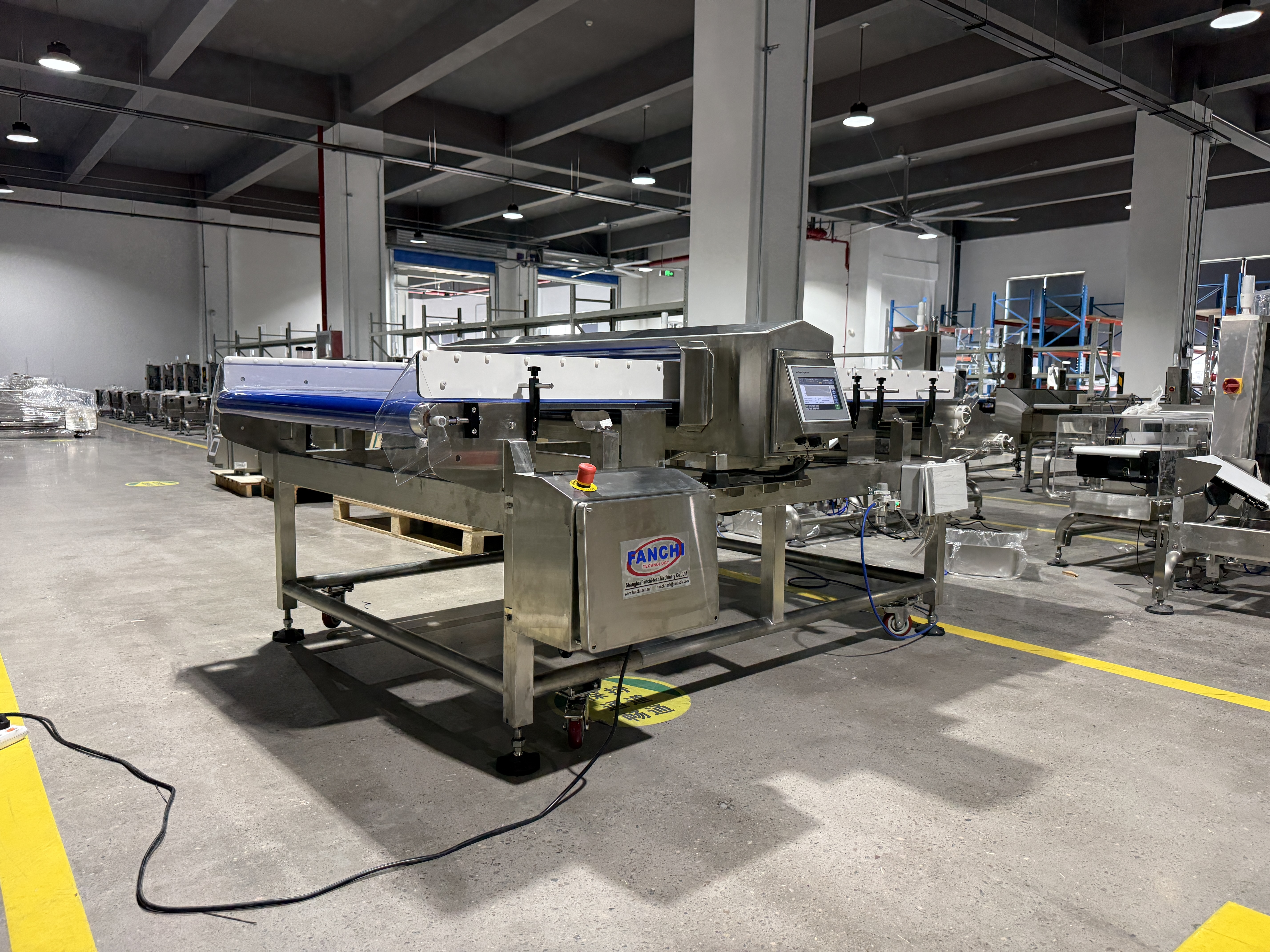

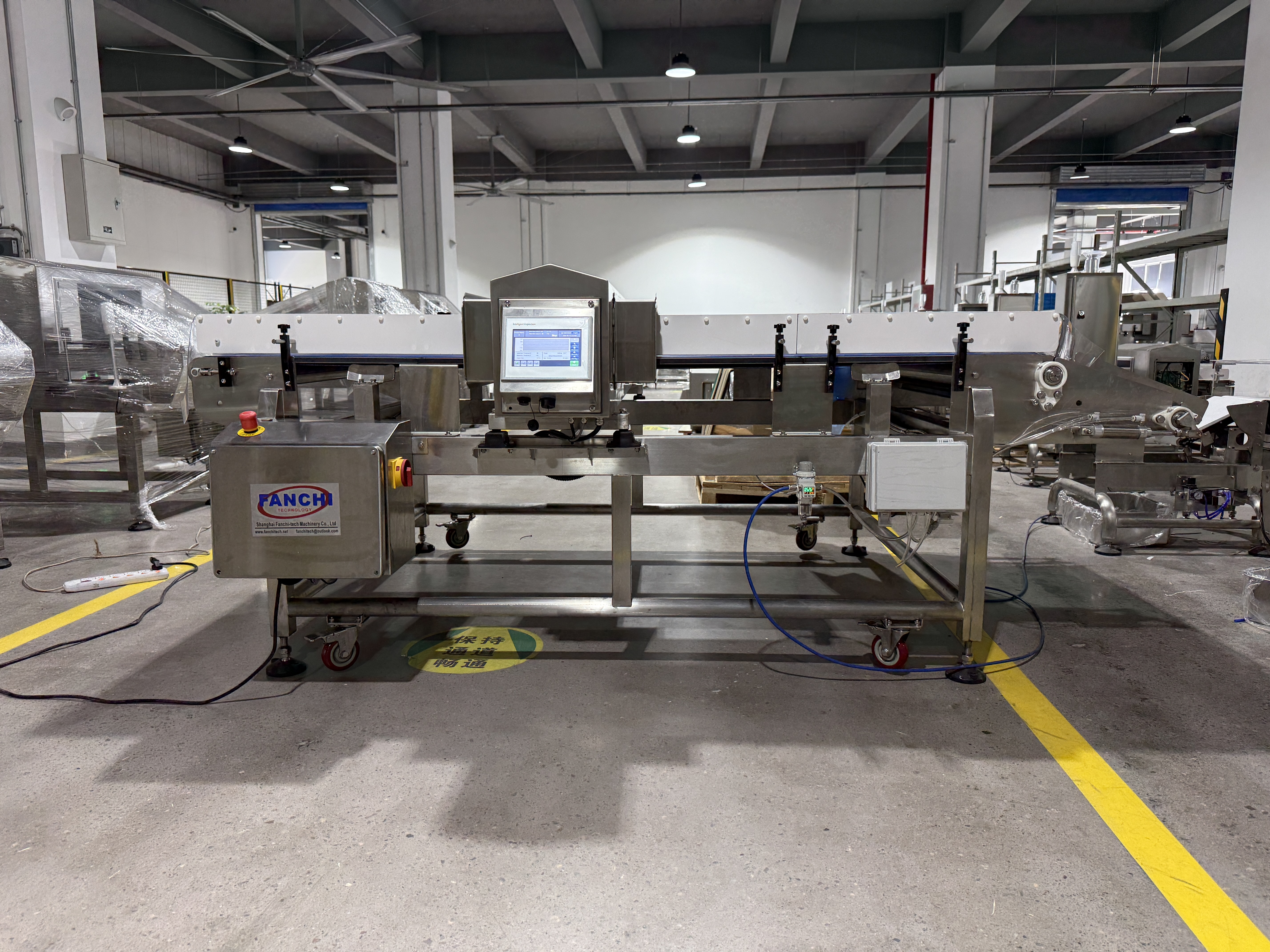

FA-MD13015 Conveyor Metal Detector Designed for the Bakery Industry

short description:

FA-MD-B13015 conveyor metal detector designed for bakery industry. auto learn, high sensitivity, IP66, SUS304, belt retraction reject for large width production lines.

Product Detail

Product Tags

Introduction&Application

Fanchi-tech Conveyor Metal Detector FA-MD-II

Fanchi Conveyor Belt Metal Detector can be used in various industries: Meat, Poultry, Fish, Bakery, Convenience Food, Ready-to-Go Food, Confectionery, Snack Foods, Dried Foods, Cereals, Grains, Dairy and Egg Products, Fruit, Vegetables, Nuts and Others. The size, stability, and sensitivity of the sensors make this an ideal inspection solution for any application. All Fanchi metal detectors are custom-made and can be individually adapted to the requirements of the respective production environment.

Product Highlights
1. Seamless connection between conveyors by German Igus edge transport system.
2. Detector head by hard-fill technology provides stable and high metal sensitivity.
3. Auto parameter setting by intelligent product learning.
4. Higher interference proof by multi-filtering algorithm and X-R orthogonal decomposition algorithm.
5. Enhanced detecting stability by intelligent phase tracking technology.
6. Anti-interference photoelectric isolation drive allows remote installation of operation panel.
7. Further improvement in metal sensitivity and detecting stability by adaptive DDS and DSP technology.
8. Storage of 100 product programs by ferromagnetic random access memory.
9. Able to detect all kinds of metal, such as iron, stainless steel, copper, aluminum, etc.
10.Output drop-end or belt retraction rejection system perfect for large width conveyor.
11.SUS304 frame and major hardware parts by CNC tooling.

Key Components

1. Germany Igus blade angle bearing.
2. US ferromagnetic random access memory
3. Japanese Oriental motor
4. SUS 304 roller bearing
5. Food grade PU conveyor belt
6. Japanese SMC pneumatic components
7. Danish Danfoss frequency converter
8. Optional keypad and touch screen HMI

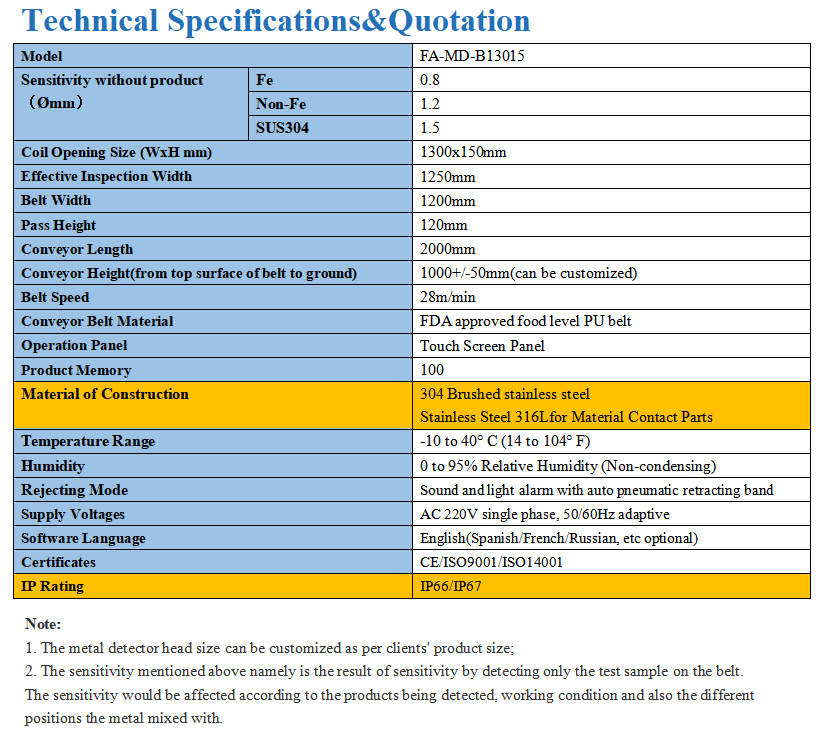

Specificitions

Item	Specifications
Model	FA-MD-B13015
Sensitivity without product（Ømm）- Fe	0.8
Sensitivity without product（Ømm）- Non-Fe	1.2
Sensitivity without product（Ømm）- SUS304	1.5
Coil Opening Size (W×H mm)	1300×150mm
Effective Inspection Width	1250mm
Belt Width	1200mm
Pass Height	120mm
Conveyor Length	2000mm
Conveyor Height(from top surface of belt to ground)	1000+/-50mm(can be customized)
Belt Speed	28m/min
Conveyor Belt Material	FDA approved food level PU belt
Operation Panel	Touch Screen Panel
Product Memory	100
Material of Construction	304 Brushed stainless steel

	Stainless Steel 316L for Material Contact Parts
Temperature Range	-10 to 40° C (14 to 104° F)
Humidity	0 to 95% Relative Humidity (Non-condensing)
Rejecting Mode	Sound and light alarm with auto pneumatic retracting band
Supply Voltages	AC 220V single phase, 50/60Hz adaptive
Software Language	English(Spanish/French/Russian, etc optional)
Certificates	CE/ISO9001/ISO14001
IP Rating	IP66/IP67

Layout

RFQ

Q: Is the FA-MD13015 specially designed for the bakery industry?

A: Yes. This conveyor metal detector is purpose-built for bakery production scenarios. It is optimized for dough, bread, cakes, pastries, flour and finished bakery goods, with dedicated algorithms to minimize false alarms caused by product effects.

Q: What types of metals can this machine detect, and what is the sensitivity?

A: It can detect all common metal contaminants, including ferrous metals (Fe), non-ferrous metals (copper, aluminum, brass, etc.) and stainless steel (SUS304 / SUS316). Under empty belt condition, the minimum detectable diameter for Fe is 0.8mm. Actual sensitivity varies by product type and production conditions, and customized calibration is available.

Q: Can this metal detector connect to my existing bakery production line, and what rejection method does it use?

A: Yes. It adopts German Igus edge transport system for seamless conveyor docking. It is equipped with a belt retraction rejection system, ideal for wide conveyor lines and soft/fragile bakery products, and will not damage products during rejection.

Q: What certifications does this machine have for the food industry?

A: The machine complies with CE standards, all food-contact parts are FDA approved, and it meets HACCP food safety system requirements, fully suitable for bakery production hygiene standards.

Q: How long is the warranty period, and do you support overseas service?

A: We provide a 12-month whole-machine warranty from the date of delivery, and lifetime technical support. We offer remote technical guidance, video troubleshooting and global spare parts supply. On-site service can be arranged upon request.
