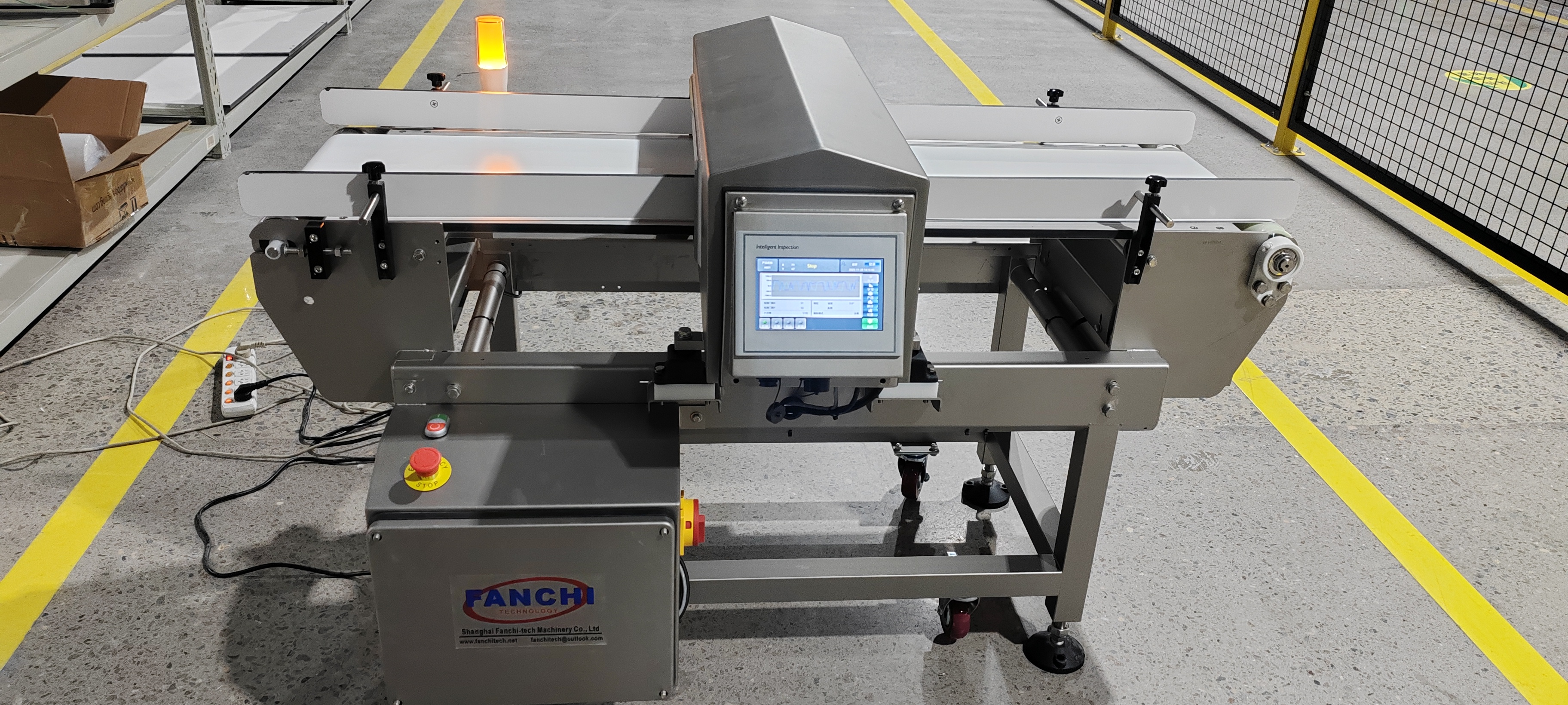

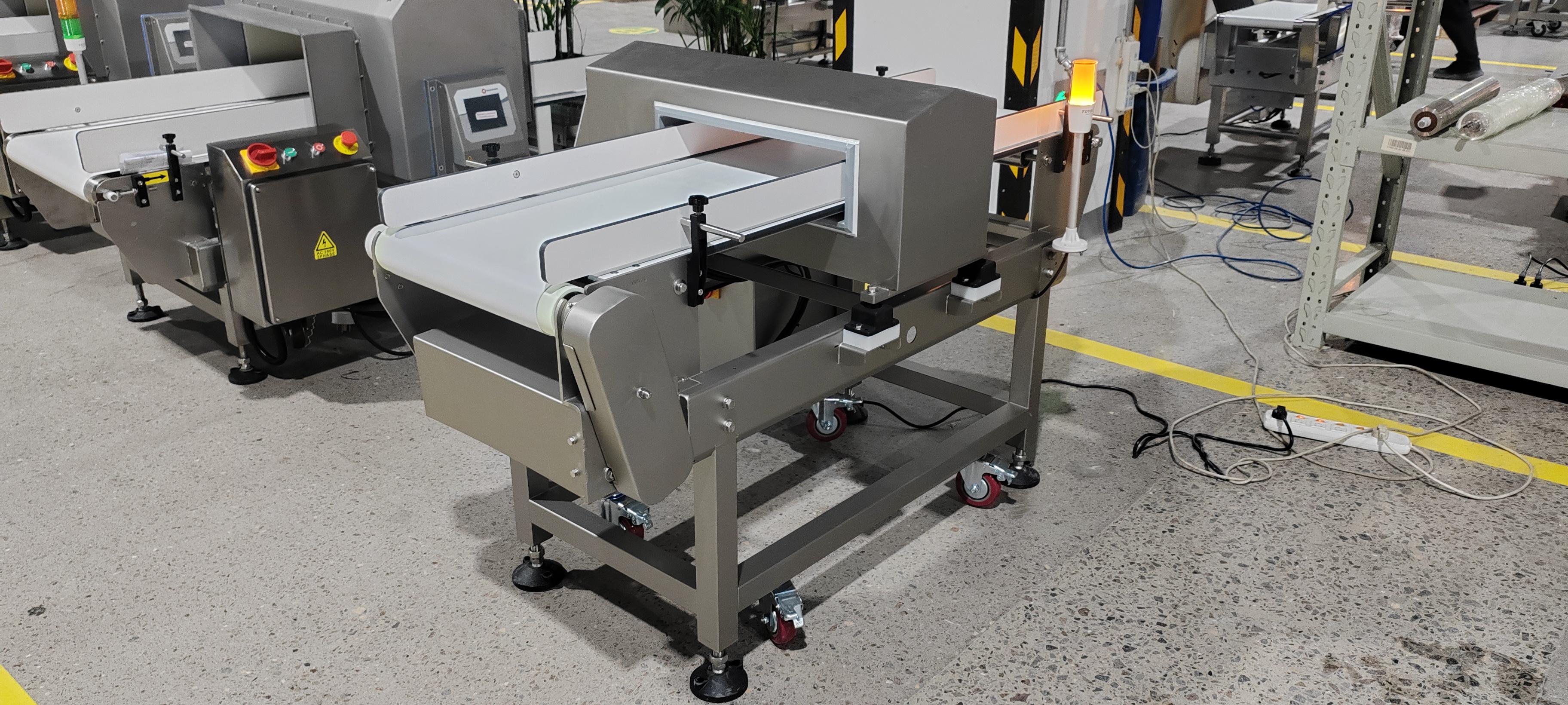

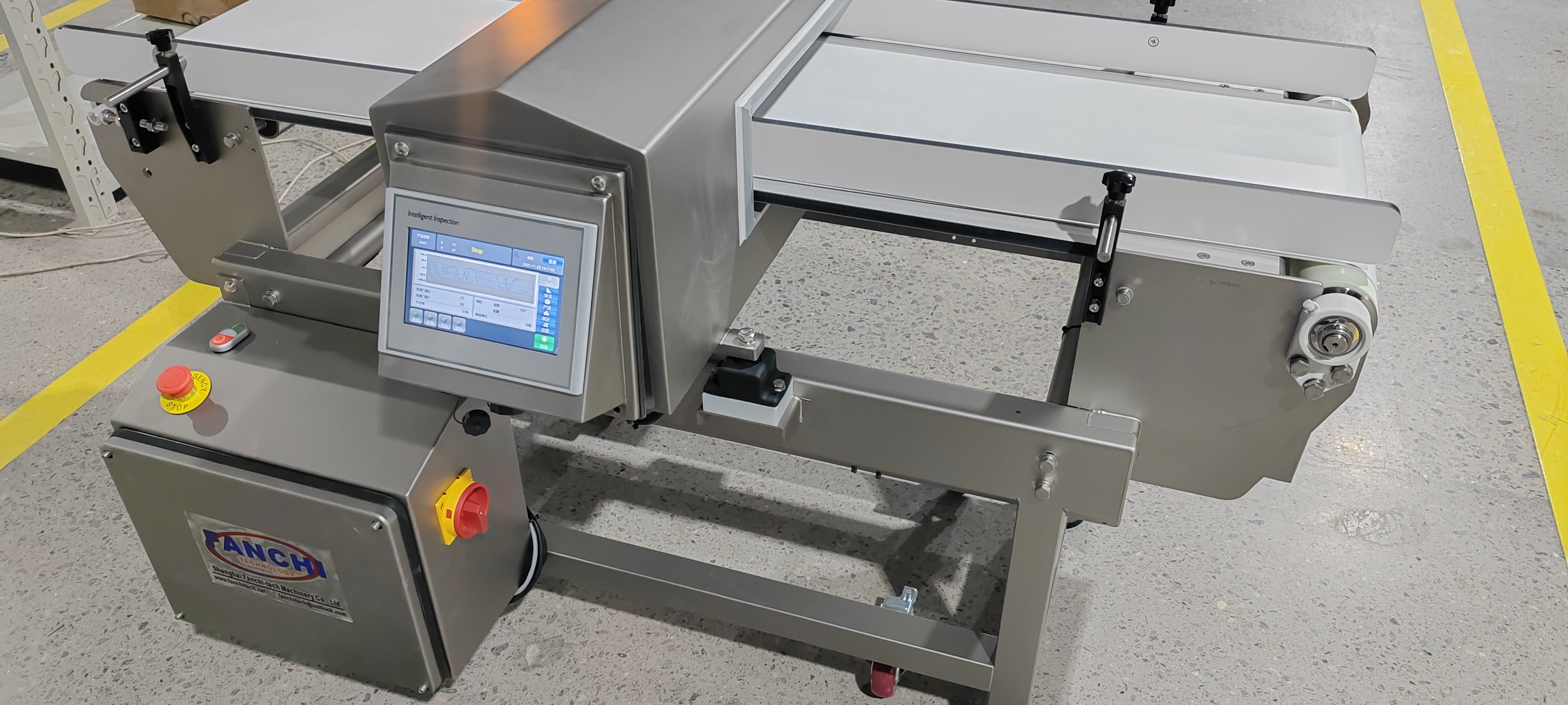

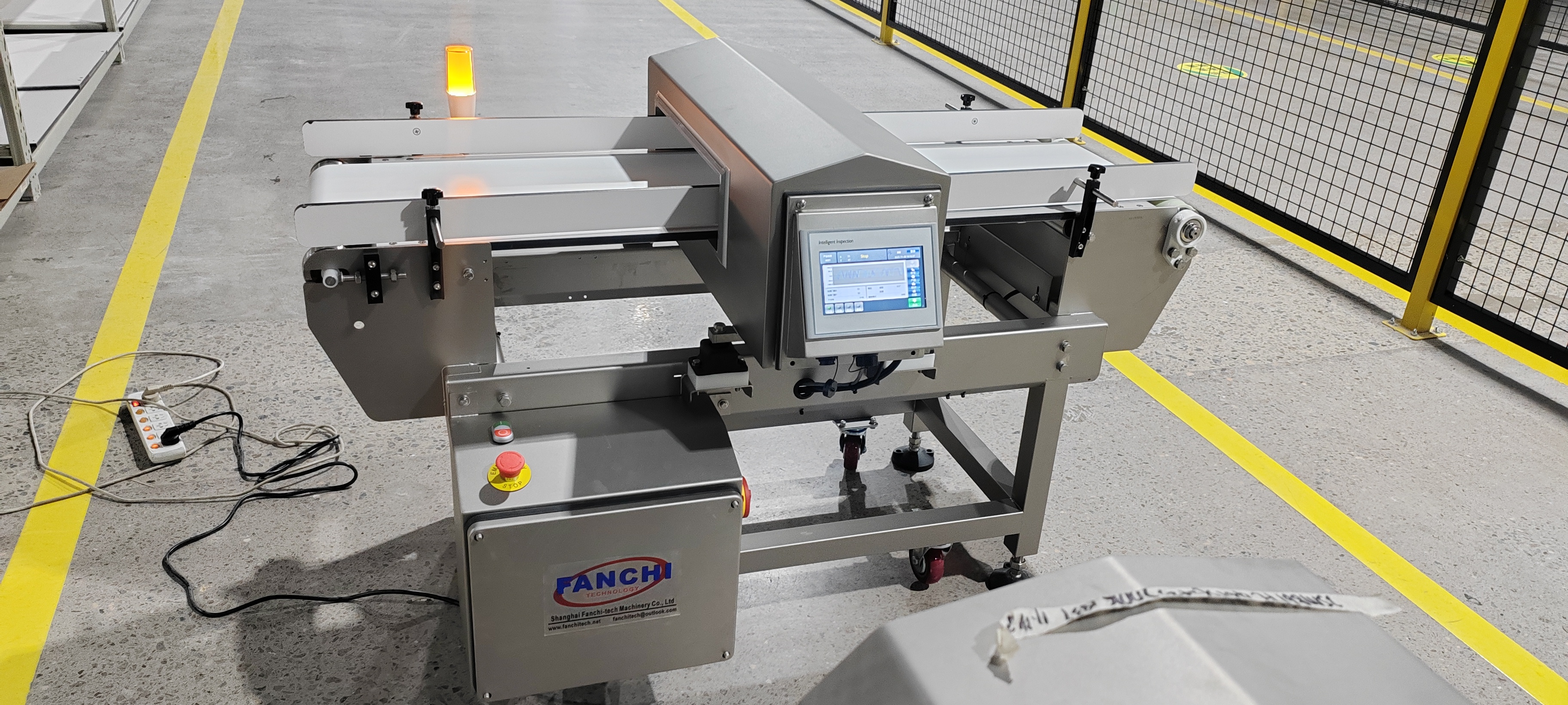

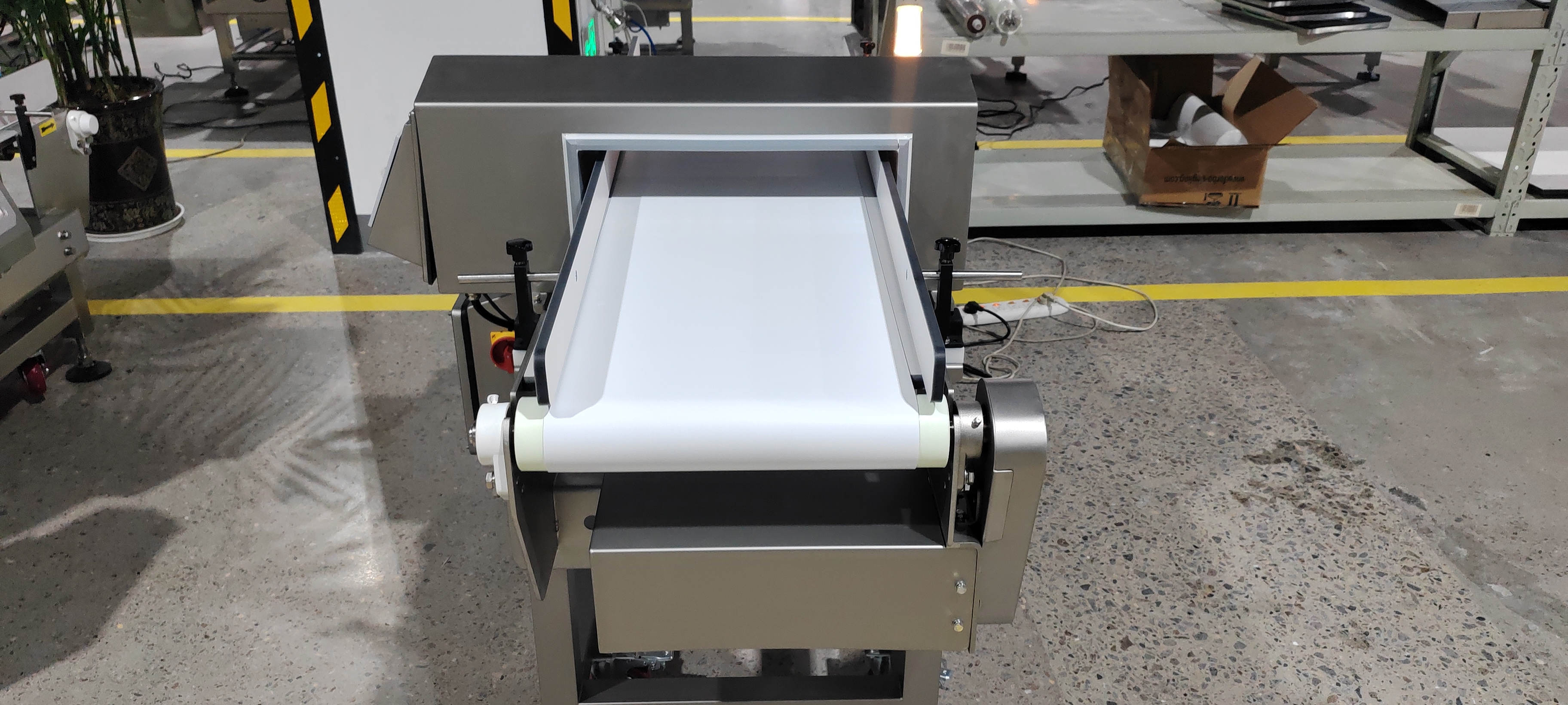

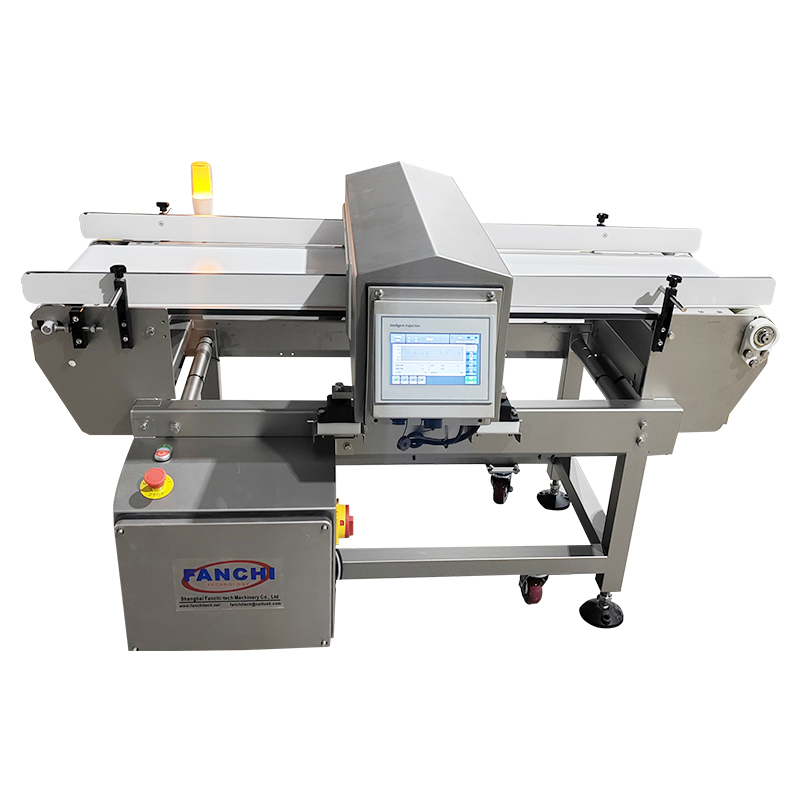

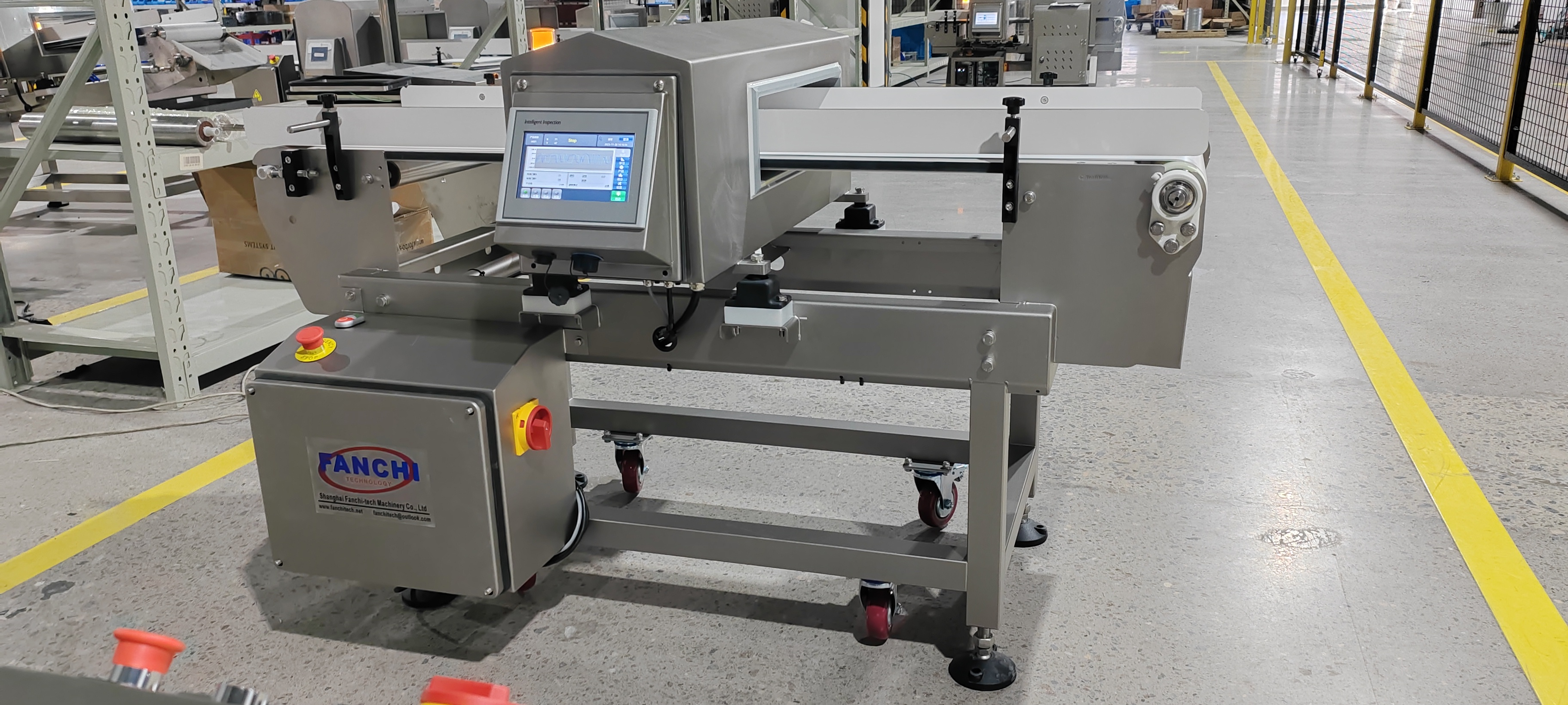

High-Sensitivity Automatic Metal Detection Machine with Touch Screen & Alarm System for Food Safety
Introduction&Application
Product Highlights
1. Full range of aperture sizes to suit products being inspected.
2. Auto parameter setting by intelligent product learning.
3. Higher interference proof by multi-filtering algorithm and X-R orthogonal decomposition algorithm.
4. Multilevel password protection provides secure access
5. Anti-interference photoelectric isolation drive allows remote installation of operation panel.
6. Further improvement in metal sensitivity and detecting stability by adaptive DDS and DSP technology.
7. Multiple product memories for rapid product change over and data storage.
8. Able to detect all kinds of metal, such as iron, stainless steel, copper, aluminum, etc.
9. Optional rejection modes: pneumatic pusher, pneumatic flipper, pneumatic drop belt, belt retraction.
10. Optional full-cover or open type collecting bin.
11. Optional output safety cover with gate-open sensor that stops the machine.
12. SUS304 frame and major hardware parts by CNC tooling.
Key Components
German HBM fast load cell
Japanese Oriental motor
Danish Danfoss frequency converter
Japanese Omron optic sensors
French Schneider electric unit
US Gates synchronous belt
Food grade conveyor belt
Weinview industrial touch screen display with USB data output
Japanese SMC pneumatic unit
Technical Specification
|
No
|
Item | Data |
| 1 | Product Name | Fanchi-Tech FA-MD-II Conveyor Metal Detector For Food |
| 2 | Material of Construction | 304 Brushed stainless steel |
| 3 | Power Supply | 220-240 VAC, 50-60 Hz, 1 Ph, 400W 110 VAC, 60 Hz, 1 Ph, 400W |
| 4 | Temperature Range | -10 to 40° C (14 to 104° F) |
| 5 | Humidity | 0 to 95% Relative Humidity (Non-condensing) |
| 6 | Belt Speed | 5-45m/min(variable) |
| 7 | Conveyor Belt Material | Food level PU belt |
| 8 | Operation Panel | Key Pad(Touch Screen is optional) |
| 9 | Product Memory | 100 |
| 10 | Rejecting Mode | Sound and light alarm |
| 11 | Software Language | English(Spanish/French/Russian, etc optional) |
| 12 | Conformity | CE (Declaration of Conformityand Declaration of Manufacturer) |
| 13 | Automatic Reject Options | Belt-Stop / Stop On Detect, Pusher, Air-blast, Flipper, Flap, etc |
Q: What food processing industries and product types is this automatic metal detection machine suitable for?
A: This conveyor metal detector is widely applicable to meat, poultry, fish, bakery, convenience food, ready meals, confectionery, snacks, dried foods, cereals, dairy & egg products, fruits, vegetables, nuts and other food production lines. It supports full-range aperture size customization and can be individually tailored to match the specific requirements of different production environments.
Q: How easy is the touch screen operation, and can it switch quickly between different products?
A: It is equipped with a Weinview industrial touch screen with intuitive operation and USB data output function. It supports intelligent product learning for automatic parameter setting, and can store up to 100 sets of product presets to realize rapid product changeover. It also has multilevel password protection to ensure secure operation access for different management levels.
Q: What kinds of metal contaminants can it detect, and what technologies ensure its detection performance?
A: It can detect all common metal contaminants including iron, stainless steel, copper and aluminum. It adopts adaptive DDS and DSP technology to improve detection sensitivity and stability, and uses multi-filtering algorithm combined with X-R orthogonal decomposition algorithm to deliver strong anti-interference capability, maintaining reliable and accurate detection even in complex production environments.
Q: What alarm and automatic rejection modes does this metal detector support?
A: It is standard configured with a sound and light alarm system that triggers immediately when metal is detected. For automatic rejection of non-compliant products, multiple optional modes are available including belt-stop, pneumatic pusher, air-blast, flipper, flap and belt retraction. Optional accessories also include full-cover or open-type collecting bins, and output safety cover with gate-open sensor that stops the machine automatically.
Q: Is the machine suitable for regular wash-down in food workshops, and what core components does it use?
A: Yes. The machine adopts 304 brushed stainless steel frame and main hardware parts processed by CNC tooling, matched with a food-grade PU conveyor belt, fully meeting strict food hygiene standards for frequent cleaning. It operates stably in -10 to 40°C temperature and 0–95% non-condensing humidity. Core components include Japanese Oriental motor, Danish Danfoss frequency converter, Japanese Omron optic sensors and Japanese SMC pneumatic unit, ensuring long-term reliable operation.
