Q: What is the core advantage of this dual-energy X-ray system over conventional single-energy models for poultry and meat inspection?

A: Equipped with an upgraded dual-energy sensor, the system generates both high-energy and low-energy X-ray images and performs dual-energy subtraction analysis. It can effectively distinguish between the meat product itself and foreign contaminants, greatly minimizing false rejects and delivering a significantly higher detection rate for thin, low-density bones that are easily missed by single-energy X-ray systems.
Q: What types of contaminants can it detect, and what is the detection sensitivity?

A: It reliably detects various foreign impurities in poultry and meat products, including thin low-density bones, stainless steel, iron, glass, ceramic and other high-density contaminants. Across the full model range, detection sensitivity reaches 0.3mm for stainless steel 304 balls, 0.2×2mm (0.3×2mm for 600mm-wide models) for fine metal wire, and 1.0mm for glass/ceramic balls.
Q: Is the system suitable for wet and harsh meat processing environments?

A: Yes. The conveying section has an IP66 protection rating, and the system adopts a fully sealed heat control design specially optimized for unpackaged bulk products such as raw meat and sausages. The sealed structure isolates core components from external humid air and water splash, reducing failure rates and production downtime. The whole machine is constructed with 304 stainless steel, fully meeting food industry hygiene standards.
Q: What models are available, and how flexible is it for production line integration?

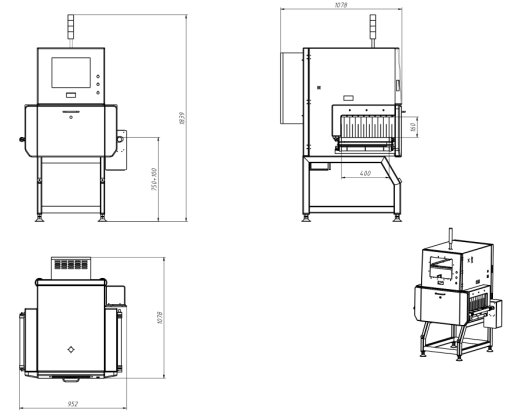

A: Four standard models are provided with tunnel sizes of 400×100mm, 400×160mm, 600×100mm and 600×160mm. All support adjustable belt speeds of 10–70m/min, with load capacities from 10kg to 15kg. Standard line height options range from 700mm to 950mm with ±50mm customization. Multiple rejector types are optional including flipper, pusher, air blasting and drop-down. It stores up to 100 product presets for fast changeover and supports data export via USB and Ethernet.
Q: What radiation safety standards does the system comply with, and how is it operated?

A: The system strictly conforms to international radiation safety standards including EN 61010-02-091 and FDA CFR 21 Part 1020.40. It is operated through a 17-inch LCD touch screen running on Windows 10 system, with intuitive menu navigation and parameter setting. It operates stably in 0–40°C ambient temperature and runs on standard AC220V single-phase power supply.
