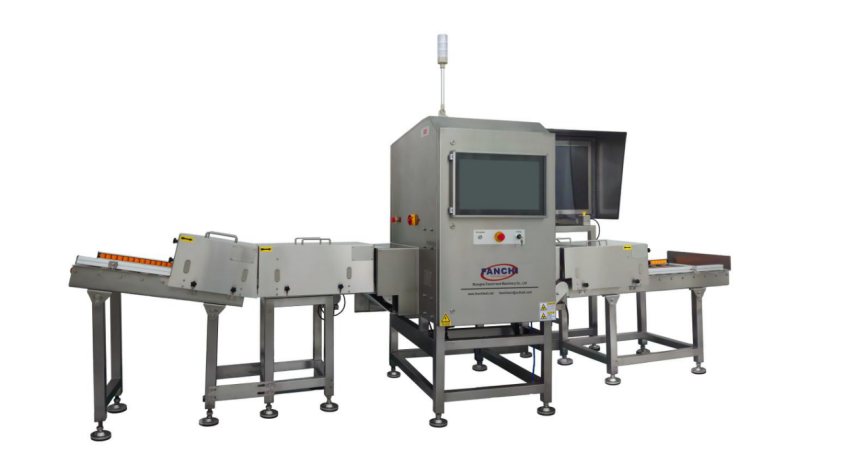

Q: What industries and contaminants is this X-ray inspection system targeted at?

A: This system is specially designed for the fishery industry. It can accurately detect fish bones as fine as 0.2×2mm, as well as other high-density foreign matters including metal, ceramic, stone, hard rubber and hard shell. It is also applicable to various packaged products such as boxed goods, plastic packages, metal foil packs and metal cans.
Q: What is the detection sensitivity of the FA-XIS4016F for fish bones and other common impurities?

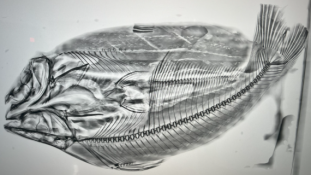

A: For fish bones, it reaches a detection sensitivity of 0.2×2mm. For other contaminants: stainless steel 304 ball at 0.3mm / wire at 0.2×2mm, ceramic ball at 1.0mm, and glass ball at 1.0mm. Powered by Fanchi’s advanced algorithm software, it delivers instant, accurate and reliable real-time detection with colored contamination analysis.
Q: Is the machine suitable for regular wash-down in food processing, and how easy is cleaning?

A: Yes. It has an IP66 protection rating and adopts a 304 brushed stainless steel frame, matched with an FDA approved food-grade light blue PU conveyor belt. The quick-release conveyor belt design enables tool-free disassembly for easy cleaning and maintenance. The hygienic structure with lead-free X-ray protective curtains also prevents radiation leakage while meeting strict food hygiene requirements.
Q: How convenient is product changeover and how can inspection data be managed?

A: It supports intelligent product learning for automatic parameter setting, and can store up to 100 product presets for rapid changeover between different products. It is equipped with a 17-inch color TFT touch screen plus a 43-inch HD monitor with user-friendly menus. All inspection data is automatically saved with time and date stamps, and can be exported via USB and Ethernet ports which also support remote maintenance by Fanchi engineers.
Q: What safety certifications does the system have, and what about its long-term operating cost?

A: The system is certified with CE, ISO9001, ISO14001 and FDA, and is fitted with full safety devices including lead-free protective curtains, magnetic safety switches at cabinet doors, emergency stop buttons and X-ray off key switch. It is engineered for low total cost of ownership: low power consumption, German Pfannenberg industrial cooling system to extend X-ray tube life, sealed non-circulating oil X-ray generator and maintenance-free rollers, all reducing long-term operation and maintenance expenses.
